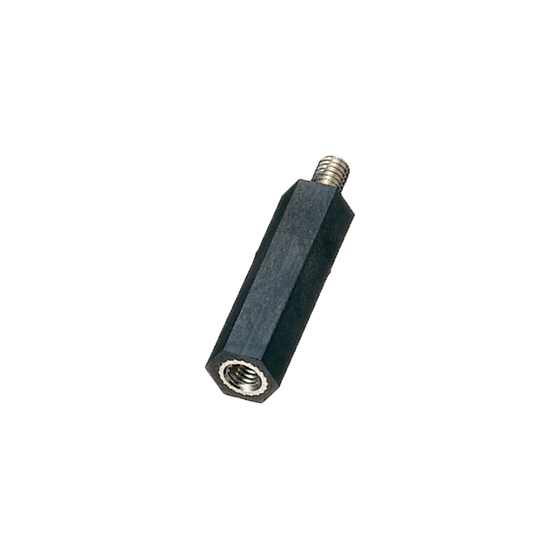

PPS Spacer Hexagonal Male Thread (Metal Integrated Molding) / BMP-E
This product is a hexagonal male and female threaded spacer made from a material that incorporates 40% glass fiber-filled PPS (polyphenylene sulfide). By integrally molding a metal screw into the main body, it achieves excellent electrical insulation properties from the resin and stable fastening capabilities from the metal screw. The material has a high heat resistance, reaching a heat distortion temperature (1.82MPa) of 260°C, making it capable of maintaining excellent rigidity and dimensional stability even in high-temperature environments. Additionally, it features flame retardancy equivalent to UL94 V-0 and excellent chemical resistance, making it suitable for use in environments where heat resistance, flame retardancy, and chemical resistance are required. It also excels in electrical insulation, helping to prevent electrical separation and shorts in circuit board mounting.
Inquire About This Product
basic information
■Specifications - Material: PPS (Polyphenylene Sulfide) with 40% glass fiber - Color: Black - Heat distortion temperature: 1.82MPa…270℃ - UL standard: UL94V-0 (material) ■Metal Parts - Material: Free-cutting brass (C3604BD) with cadmium content less than 75ppm - Treatment: Nickel plating (Ni) ■Size Variations - Screw diameter: M3/M4 ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board assembly, electronic component assembly, semiconductor assembly, relay terminal assembly, distribution board components, robot parts, industrial machinery, machine tool components, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
