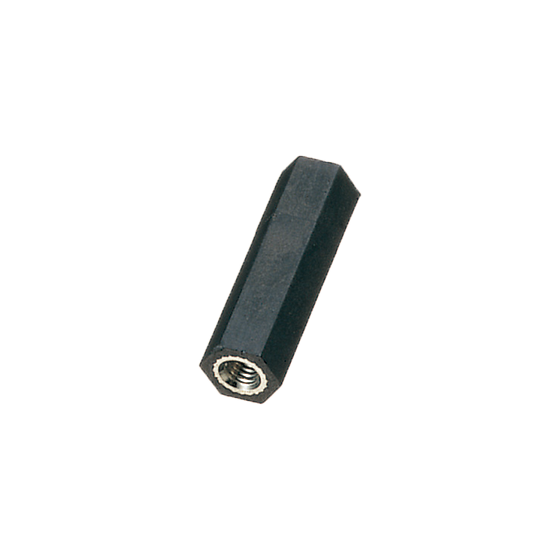

PPS Spacer Hexagonal, Both Ends Threaded (Metal Integrated Molding) / AMP-E
This product is a hexagonal double-ended threaded spacer made from a material that incorporates 40% glass fiber-filled PPS (polyphenylene sulfide). By integrally molding a metal screw into the main body, it achieves a combination of the excellent insulation properties of resin and the strong fastening capability of metal. The material boasts high heat resistance with a heat distortion temperature reaching 260°C at 1.82 MPa, maintaining excellent rigidity and dimensional stability even in high-temperature environments. It also features flame retardancy equivalent to UL94 V-0 and excellent chemical resistance, making it suitable for harsh operating conditions. With outstanding electrical insulation properties, it poses no risk of short circuits in circuit board mounting and has minimal concerns regarding corrosion, making it a suitable fastening component for a wide range of industrial fields that require reliable electrical separation.
Inquire About This Product
basic information
■Specifications - Material: PPS (Polyphenylene Sulfide) with 40% glass fiber - Color: Black - Heat distortion temperature: 1.82MPa…260℃ - UL standard: UL94V-0 (material) ■Threaded part - Material: Free-cutting brass (C3604BD) with cadmium content below 75ppm - Treatment: Nickel plating (Ni) ■Size variations - Screw diameter: M3/M4 ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our company website or catalog, or feel free to contact us.
Delivery Time
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
