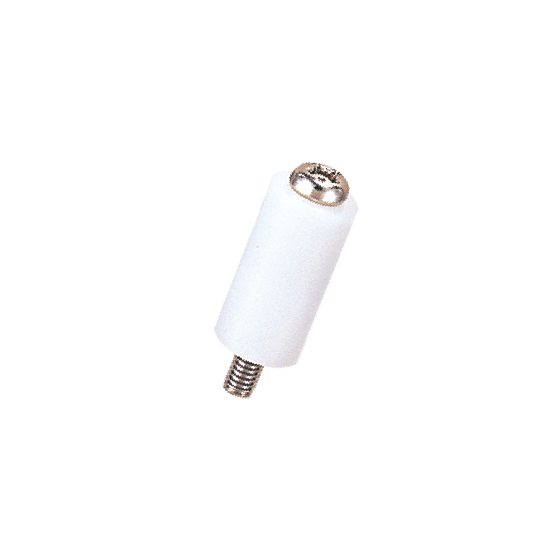

Juralon set spacer (screw protruding type) / ST
This product is a set-type spacer that allows for the integrated management and delivery of the spacer body, mounting screws, and washers for the fixation work of circuit boards. The term "screw protrusion type" in the model number refers to a structure where the head of the screw protrudes moderately from the end face of the spacer when installed, designed to ensure accurate positioning when stacking circuit boards and proper engagement during stacking. The body is made of Delrin (POM), which offers excellent mechanical strength and high dimensional stability. This material has very low water absorption, resulting in minimal dimensional changes due to variations in temperature and humidity, allowing for the maintenance of accurate spacing over long periods, even in high-density implementations where multiple circuit boards are stacked.
Inquire About This Product
basic information
■Specifications - Material: Duracon (POM) - Color: Milky white - Heat distortion temperature: 1.82MPa…110℃ - UL standard: UL94-HB (material) set washer - Material: Duracon (POM) ■Size Variants - Nominal diameter: For M2 / For M2.6 / For M3 ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board assembly, electronic component assembly, semiconductor assembly, relay terminal assembly, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
