Made-to-order product with a slim design, allowing for stable processing as it can be machined at the center of the machine.

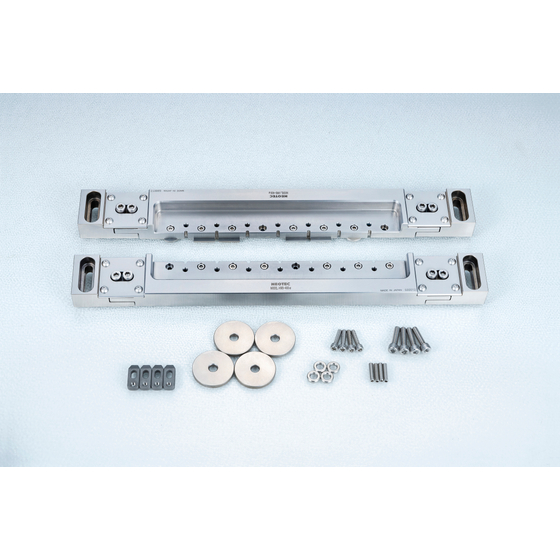

【Slim Design】Wire Cut Bridge for Wire Cut Electrical Discharge Machining Introducing the 'Slim AWB-TH Series/WB-TH Series'. For customers primarily working with thin materials, we have enhanced the clamping ability of the bridge body by incorporating counterboring (approximately 12mm thick). The basic operating methods are the same as those of the AWB Series and WB Series. 【Features】 <AWB-TH Series> ■ Equipped with horizontal adjustment function Made to order Allows for higher precision setup <WB-TH Series> ・ Made to order ・ Available for single unit sales *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Features】 1. <Thin AWB-TH Series> ・Equipped with horizontal adjustment function ・Made to order ・Allows for higher precision setup ・Improved clamping capability for thin workpieces with a bridge thickness of approximately 12mm (varies by model) 2. <Thin WB-TH Series> ・Made to order ・Available for individual sale *For more details, please refer to the PDF document or feel free to contact us.
Price information
Please feel free to contact us.
Delivery Time
※The delivery date may vary depending on the content, so please feel free to contact us.
Applications/Examples of results
【Uses/Examples of Achievements】 ■ Custom manufacturing is possible according to various manufacturers. *For more details, please refer to the PDF document or feel free to contact us.
Line up（8）
| Model number | overview |
|---|---|
| Slim AWB Series | Thin Wire Cut Bridge |
| Slim WB Series | Thin Wire Cut Bridge |
| WUB-301 V Block (Small) | Wire Cut Bridge Option (Special Accessory) |
| WUB-302 V Block (Large) | Wire Cut Bridge Option (Special Accessory) |
| WUB-303 Four-Connection V Block | Wire Cut Bridge Option (Special Accessory) |
| WUB-401 Thin Material Nozzle | Wire Cut Bridge Option (Special Accessory) |
| WUB-501 Screw-Type Vice | Wire Cut Bridge Option (Special Accessory) |
| WUB-601 V Block (Extra Large) | Wire Cut Bridge Option (Special Accessory) |
catalog（2）
Download All Catalogs
CAD data（17）
| Model number | overview | File |
|---|---|---|
| WUB-401 |
|
|
| WUB-302 |
|
|
| WUB-301 |
|
|
| AWB-480TH_3D_DL.stp |
|
|
| AWB-495TH_3D_DL.stp |
|
|
| AWB-574TH_3D_DL.stp |
|
|
| AWB-680TH_3D_DL.stp |
|
|
| AWB-700TH_3D_DL.stp |
|
|
| AWB-830TH_3D_DL.stp |
|
|
| AWB-880TH_3D_DL.stp |
|
|
| AWB-480TH_3D_DL.iges |
|
|
| AWB-495TH_3D_DL.iges |
|
|
| AWB-574TH_3D_DL.iges |
|
|
| AWB-680TH_3D_DL.iges |
|
|
| AWB-700TH_3D_DL.iges |
|
|
| AWB-830TH_3D_DL.iges |
|
|
| AWB-880TH_3D_DL.iges |
|
