SGM series (outer diameter 24mm to 60mm)

last updated：Oct 13, 2026

CLUW Inc.

Explanation of various manufacturing equipment and automation of small FA lines. Space-saving geared motors ideal for conveyor transport and roller drive.

In manufacturing sites for food, electronic components, and daily necessities, "automation and labor-saving of equipment" has become an urgent necessity to address the serious labor shortage. Particularly in "small manufacturing equipment" such as automatic packaging machines, labeling machines, and component supply feeders, a compact drive source that can be integrated without gaps into the limited space of the equipment is essential. However, there is a design dilemma where reducing the motor size results in insufficient torque, and attempting to secure adequate driving force leads to the entire device becoming larger. Our "ID Series / ED Series (small geared motors)" are compact drive units that achieve reliable torque transmission while being palm-sized. With an optimized reduction gear mechanism, they can be easily integrated into mini conveyors and various roller drive components on manufacturing lines, making them a highly versatile option to support space-saving and stable operation of FA automation equipment.

Inquire About This Product

basic information

■ Rated Voltage: DC12V / 24V / 310V (depending on the model) ■ No-load Speed: 3000 to 7800 rpm (before gear connection) ■ Reduction Ratio: 1/3.6 to a maximum of 1/1024 (wide range of gear ratios available) ■ Structure: Brushless motor + Gear head ■ Drive Method: ・ED Type (External Driver Type): High output design that maximizes motor capability. Requires an external driver separately. ・ID Type (Built-in Driver Type): Driven by power input and PWM signal only. Supports switching between forward/reverse and FG signal output, contributing to space-saving. ■ Motor Life: 2000 to 4000 hours (when using ball bearings) ■ Options: Selection of optimal gear ratios tailored to applications, customization available upon consultation ■ Key Points for Designing Compact Manufacturing Equipment and FA Devices ・Miniaturization of Equipment: The size of the motor significantly affects the overall size of the equipment, necessitating high-efficiency geared motors that fit into tight spaces. ・Stable Continuous Operation: In manufacturing lines that operate 24 hours, reliability is required to minimize issues due to heat generation and wear, reducing maintenance efforts.

Price information

We are achieving overwhelming low prices that strongly promote the replacement of conventional low-cost brushed motors with long-lasting brushless motors. Mass production on automated lines significantly contributes to cost reduction during mass production. Prices vary depending on outer diameter size, drive method (built-in/external), and gear ratio, so please request a quote for details, including prototypes and mass production lots.

Price range

Delivery Time

Please contact us for details

※We provide flexible support from free samples for trial and evaluation to mass production delivery. Please consult our sales department for specifications not listed in the catalog.

Applications/Examples of results

Through thorough cost reduction and compact design, it is active in a wide range of applications from mass-produced consumer devices to small industrial equipment. 【Main Applications and Adoption Examples】 - Drive shafts for tabletop robots and small FA devices - Various vending machines (product dispensing, bill and coin transport mechanisms) - Amusement machines (arm drive for crane games, etc.) - Massage chairs (drive for kneading balls and reclining mechanisms) - Small pumps and transport units for photo booth machines and medical devices - Film feeding and sealing roller drive for food packaging machines and pillow packaging machines - Mini conveyors and belt drive shafts for transporting electronic components and small workpieces - Work supply sections for labelers, cardboard sealing machines, and printing printers - Small parts feeders and discharge mechanisms within various automatic assembly machines and inspection devices 【Thorough Support Unique to Our Crew】 For customers who want to use low-cost motors from overseas but are concerned about troubles after implementation or how to use them, our company will act as a "supporting role" and run alongside the project. We provide thorough support until customers are satisfied with the integration, including technical support via screen sharing and on-site assistance as needed.

Detailed information

Manufacturing 1
Manufacturing 2
Manufacturing 3
Manufacturing 4
Manufacturing 5

Line up（10）

Model number	overview
SGM30A-ED (Outer diameter 30mm / 12V・24V)	ED Series (External Driver Type)
SGM36A-ED (Outer diameter 36mm / 12V・24V)	ED Series (External Driver Type)
SGM43A-ED (outer diameter 43mm / 12V・24V)	ED Series (External Driver Type)
SGM52A-ED (outer diameter 52mm / 12V・24V)	ED series (external driver type)
SGM56A/B-ED (outer diameter 56mm / 24V)	ED Series (External Driver Type)
SGM60A/B-ED (Outer diameter 60mm / 24V・310V)	ED Series (External Driver Type)
SGM24A/B-ID (Outer diameter 24.4mm / 12V・24V)	ID Series (with built-in driver)
SGM28A-ID (Outer diameter 28mm / 12V・24V)	ID Series (Built-in Driver Type)

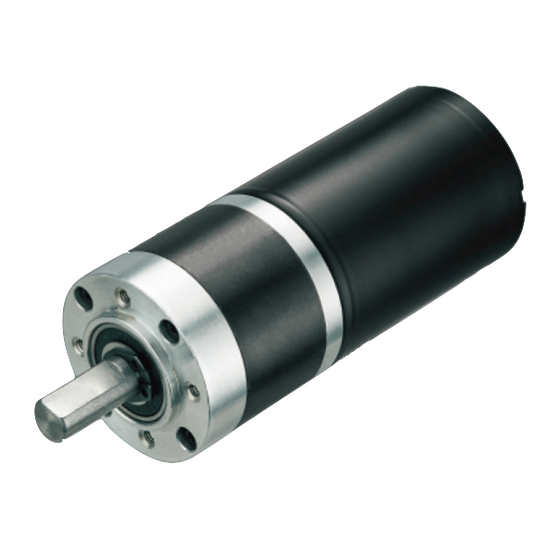

SGM36A-ID (Outer diameter 36mm / 12V・24V)	ID Series (Driver Built-in Type)
SGM42A-ID (Outer diameter 42mm / 12V・24V)	ID Series (Built-in Driver Type)
