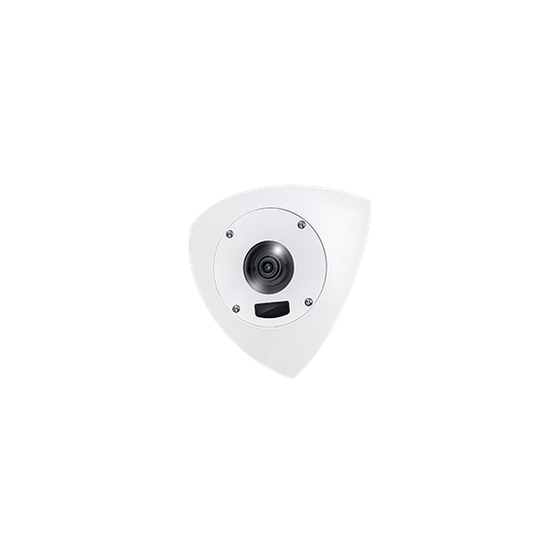

Surveillance Camera: Corner Dome Type Camera [CD9381-HNTV]
Security camera, surveillance camera, network camera
AI-equipped 5MP outdoor compatible 30 fps@2560x1920, 10m 940nm IR, remote focus
The VIVOTEK CD9381-HNTV is a corner dome camera designed for installation in correctional facilities and similar environments. It is vandal-proof and monitors living spaces in high resolution while preventing misuse with its anti-ligature design that eliminates potential hanging points such as ropes. It achieves a resolution of 5 megapixels at up to 30fps and is equipped with a 940nm IR illuminator, two-way audio, and a varifocal lens.
Inquire About This Product
basic information
■30 fps @ 2560x1920 ■H.265 video compression technology with Smart Stream 3 ■SNV (Night Vision Capability), WDR Pro, and Smart IR ■Digitally signed firmware and secure boot ■Smart motion detection to reduce false alarms ■Trend Micro IoT security provided during the standard warranty period ■Housing compliant with dustproof and waterproof P6K9K/IP67 standards and impact resistance IK10+ standards ■Equipped with invisible 940nm IR-LED effective up to 10 meters ■Anti-tamper design that prevents snagging with ropes, etc. ■Corner dome camera suitable for installation in correctional facilities, etc. ■Built-in microphone
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the PDF document or feel free to contact us. *Please feel free to inquire about renting a demo unit as well.
Line up（1）
| Model number | overview |
|---|---|
| CD9381-HNVF2 | Outdoor Corner Dome Camera ■ 5MP, 2.4mm, 10M 940nm IR, WDR Pro, SNV, IK10+ |
