Optimize the cost of picking and transportation. A drive system with high torque and a simple design, ideal for small AGVs.
In picking operations at logistics warehouses, improving transportation efficiency and controlling equipment introduction costs are important challenges. Particularly with the introduction of small AGVs and conveyor systems, expensive motors with excessive functions can unnecessarily drive up equipment investment costs. What is required on-site is a drive source that reliably possesses the basic performance of "turning and stopping" for stable long-term operation. Our 'PGM Series' provides an optimal solution that ensures the necessary torque while keeping the mass production costs of transport equipment low through a simple design that eliminates complex electronic controls. 【Usage Scenarios】 - Drive units for small AGVs used in picking - Power sources for conveyor lines within warehouses - Transport units for automatic sorting devices 【Benefits of Implementation】 - Shortened payback period due to reduced equipment introduction costs - Achieving stable transport operations through high torque design - Reduced maintenance burden due to simple design
Inquire About This Product
basic information

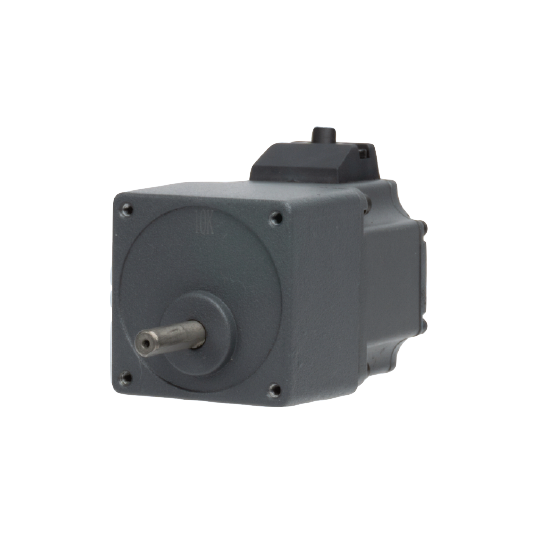

【Features】 - Compact and high-torque output achieved through the use of planetary gears - A rich lineup with rated outputs ranging from 20W to 500W and three selectable power supply voltages - Options available for parallel shaft, hollow shaft flat, and orthogonal shaft to suit various applications - Simple speed control that can be intuitively operated with a single switch - High price competitiveness suitable for mass production projects 【Our Strengths】 As a specialized company in low-voltage battery-driven motors, we assist in selecting the optimal motors and drivers according to design specifications. We provide support from driver settings and operation training after delivery to on-site operational assistance, ensuring that your automation equipment operates reliably.
Price information
By stripping away excessive features and focusing on basic performance, we have achieved an overwhelmingly low price of "less than half the cost" compared to conventional domestic manufacturer equivalent products (brushless motor + planetary gear). The drastic cost reduction of the motor alone dramatically lowers the manufacturing cost of the entire equipment. Prices vary depending on the combination of voltage, output, gear shape, and driver, so please request a detailed estimate. It demonstrates its maximum effectiveness when implemented in bulk for mass production machinery (volume discount).
Delivery Time
Applications/Examples of results
As a drive module that balances space-saving and high output, it is ideal for projects with strict budget and space constraints. 【Main Application Examples】 Manufacturing FA and automation equipment: Industrial machinery that requires reliable speed and torque control in limited space, such as small conveyor drives, indexing table rotation, lifters, and packaging machines within factories. Small AGVs and automated transport robots: Standardly compatible with DC24V battery drive. Used as drive axes or power sources for small AGVs (automated guided vehicles) that autonomously navigate within factories and warehouses. Next-generation technology verification and testing environments: Contributing to rapid prototyping as a "mobility and power source" incorporated into platforms for prototyping new mechanisms and conducting demonstration experiments. We respond to requests such as "I want to arrange the motors orthogonally according to the layout of the equipment" or "I want to procure the same motor cheaply in large quantities" with three types of gear shapes (parallel axis, L-type, R-type) and overwhelming cost advantages. Customizations during mass production, such as adding non-excited brakes, can also be flexibly accommodated.
Line up（5）
| Model number | overview |
|---|---|
| PGM60 Series | （□60mm / 20W・50W） |
| PGM80 series | （□80mm / 50W・75W・100W） |
| PGM90 Series | （□90mm / 75W・100W・150W・300W・500W） |
| PGM104 Series | （□104mm / 150W・300W・500W） |
| All models | *All models allow you to choose from the gear head shapes of parallel axis (S1), hollow axis flat L type (S2), and orthogonal axis R type (S3). *We offer a lineup of power supply specifications for DC24V, AC110V, and AC220V. |
catalog（4）
Download All Catalogs
Company information
CLUW Inc. specializes in low-voltage battery-driven motors and control drivers, offering a comprehensive lineup from compact to high-power models. Our product range includes Brushless DC Motors, Battery-Driven AC Servo Motors, Geared Motors, In-Wheel Motors, and Cooling Fans. Beyond product supply, we deliver dedicated technical support—from driver selection and setup guidance to troubleshooting—ensuring seamless operational integration for our customers.
