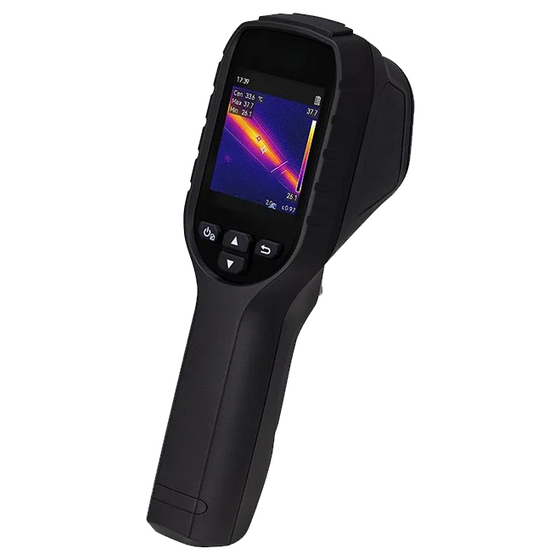

The M2THGP-6749A is a handheld thermal imaging camera that measures the surface temperature of objects non-contactly and visualizes the temperature distribution through differences in color.
The measurement temperature range is -20 to 550°C, and the thermal image resolution is 96×96 pixels, with the ability to display high-resolution images of 240×240 pixels using the Super IR function. Additionally, a high frame rate of 25Hz allows for smooth thermal images to observe temperature changes. It supports a wide range of applications, including detecting abnormal heat in equipment, checking the temperature of pipes and motors, and investigating the insulation condition of buildings. It also supports saving images and videos and transferring data to a computer, efficiently assisting in equipment inspections, maintenance management, and temperature measurement tasks.
Inquire About This Product
basic information
■Specifications Thermal Image Resolution: 96×96 pixels (normal mode) 240×240 pixels (Super IR mode) Temperature Measurement Range: -20 to 550℃ Temperature Measurement Accuracy (Ambient Temperature 25℃): ±2℃ or the larger of ±2% Temperature Resolution: 0.1℃ Frame Rate: 25Hz Spatial Resolution IFOV: 8.89mrad Measurement Field of View: 50°×50° D:S Ratio: 112:1 Display: 2.4-inch color LCD Visible Camera Resolution: 640×480 pixels Focus: Fixed Measurement Wavelength: 8–14μm Emissivity: 0.01–1.00, adjustable in increments of 0.01 Memory: 4GB built-in flash memory (2.29GB available due to system and shared memory) Image Format: JPEG Storage Capacity: Approximately 16,000 images Video Format: MP4 Storage Capacity: Approximately 20 hours (if recording time exceeds 3 minutes) Alarm Operation: Upper and lower limit alarm -20 to 550℃ (adjustable in increments of 0.1℃) Upper limit: Red display, lower limit: Blue display Interface: USB Type-C Power Supply: Built-in lithium-ion rechargeable battery Continuous Operating Time: Approximately 8 hours (when fully charged) Dust and Water Resistance: IP54
Price range
Delivery Time
Applications/Examples of results
■Purpose ●Confirmation of temperature anomalies in equipment and devices ●Visualization of heat generation points and temperature distribution ●Inspection of buildings and equipment ●Temperature measurement and monitoring at fixed points ●Analysis, recording, and report creation of thermal images using a PC
