Sanitary steam trap operating at subcooling temperature of 1.7°C or lower.
Leave precision control of clean steam pressure and the like to us!

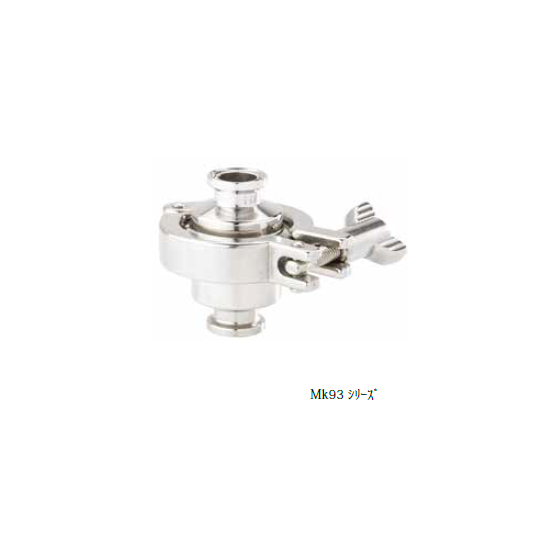

We would like to introduce the "Sanitary Steam Trap" that we handle. It is designed to operate at subcooling temperatures below 1.7°C, and we have a lineup including the Mk93 series. This thermostatic trap is suitable for applications such as pure steam SIP in the pharmaceutical and consumer health and beauty product industries, as well as for loop drainage. 【Features】 ■ Diaphragm lifespan guarantee ■ Clevis-free check valve without springs ■ Downstream check valve suitable for bioprocess drain applications ■ Precision aseptic flow control valve ■ ASME sanitary safety valve produced in the USA *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
[Mk93 Series, Medium to High Flow, Clean Steam Trap (Partial)] ■ Connection Sizes: 1/2", 3/4", 1", 1-1/2" (DN15, DN20, DN25, DN40) ■ Connection Orientation: Vertical, Horizontal ■ Connection Types: ASME, DIN, ISO Tri-Clamp, Pipe Weld ■ Maximum Pressure/Temperature: 1.0MPa @ 177℃ *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications (Partial)】 ■ Upstream/Downstream Process Vessels: Bypass loop traps for small to medium-sized and large containers ■ Upstream/Downstream Process Vessels: High flow assurance SIP drain systems ■ Sterilizing Filters: Assurance SIP condensate drain systems from filters ■ Clean Steam Distribution Loops: Drainage for loop drains and areas using PCV *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
