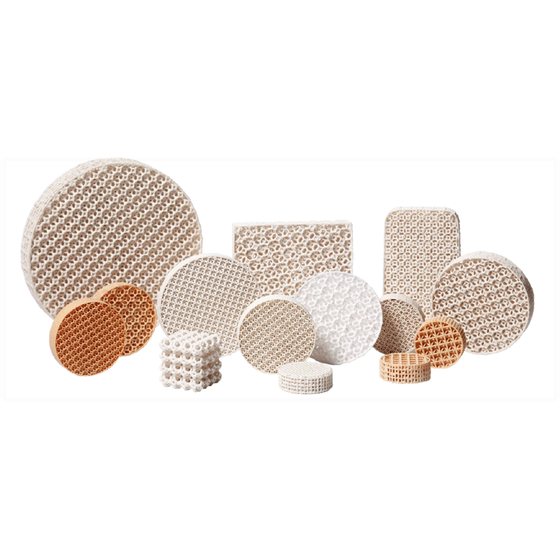

"EXACTPORE," a unique structure manufactured using 3D printer technology.
ASK Chemicals' 'EXACTPORE' is an engineering filter manufactured using cutting-edge 3D printing technology (additive manufacturing) that sets it apart from conventional ceramic foam filters. It demonstrates excellent performance under harsh casting conditions, such as high-temperature casting exceeding 1700°C due to its high heat resistance, and the treatment of molten metal for large cast steel products on the scale of 10 tons per batch due to a dramatic increase in throughput capacity. These capabilities also enhance the freedom of design options.
Inquire About This Product
basic information
■Three Features 1. "Approximately 3 times" the casting weight with the same area Compared to conventional filters, it can handle about three times the filtration weight even with the same area. This allows for an increase in processing capacity without expanding the filter size (area), significantly enhancing the design flexibility. It demonstrates high reliability, especially for large cast steel products at the several-ton level. 2. "High rectification effect" that suppresses turbulence An overwhelming rectification effect has been proven compared to conventional 3D filters. The uniformly designed cell structure effectively suppresses the disturbance (turbulence) of the molten metal. It significantly reduces the entrapment of air (oxygen), thereby lowering the risk of casting defects due to reoxidation. 3. Full support structure with no concern for "chipping" Unlike conventional products where preventing chipping is difficult during the manufacturing process, it is designed with a "full support structure" that protects even the sides of the filter. This nearly completely prevents damage to the filter itself and the contamination of chipped fragments, eliminating the root cause of inclusion defects.
Price information
If you are interested, please feel free to contact our sales representative or email us at info.japan@ask-chemicals.com.
Delivery Time
Applications/Examples of results
EXACTPORE is not just a consumable, but a "next-generation high-performance filter" for controlling casting quality. Pore size and shape can also be freely customized to meet customer requirements.
catalog（1）
Download All Catalogs
Company information
ASK Chemicals Japan Co., Ltd. is the Japanese subsidiary of ASK Chemicals, which provides comprehensive solutions and customized services for the foundry industry. Our company leverages specialized knowledge in binder technology and primarily engages in the manufacturing, processing, and sales of materials for mold production, as well as cast iron, steel, alloy iron, aluminum, and related products. If you have any inquiries regarding materials for mold production, please feel free to contact us. With the acquisition of the industrial resin division of SI Group in 2022, we have also ventured into the industrial resin field beyond foundry applications, establishing ourselves as a chemical solutions manufacturer focused on phenolic resin technology.
