Introducing a high-performance rectangular pack case that adopts a double type!

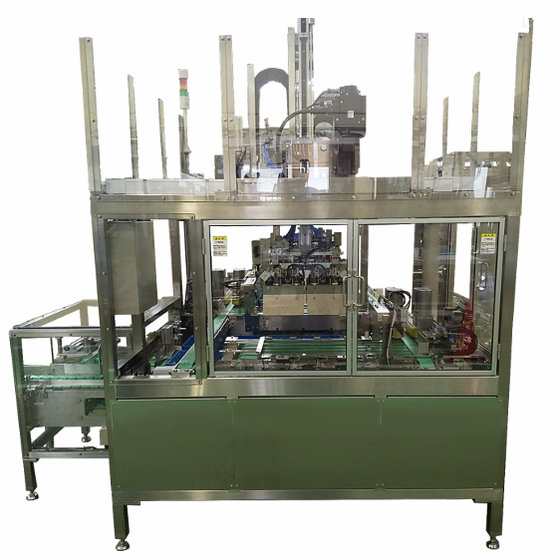

The "759" is a carton case for rectangular packs designed for dairy industry resin crates. It accommodates various sizes of rectangular beverage packs (such as 41×65×85mm) and is designed to be compatible with packs that have straws. It boasts a high capacity of 18,000 units per hour (normal operation) with 9,000 units on 2 lines. 【Specifications (partial)】 ■ Carton: Rectangular beverage pack 41×65×85(mm) *Compatible with various sizes, straw-compatible ■ Case: Resin crate for the dairy industry ■ Number of aligned units: 4 units × 10 rows = 40 units/case ■ Capacity: 9,000 units × 2 lines = 18,000 units/hour (normal operation) *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Other Specifications】 ■ Main Power: Head Drive: Servo Motor Side Belt Conveyor: Induction Motor ■ Main Frame Dimensions: W1750×L1800×H2200 (Maximum protrusion H2490) *Carton transport height set at H850 ■ Material: Main Parts SUS304, Aluminum, etc. ■ Compressed Air: Supply Pressure: 0.6MPa Consumption: 500NL/min ■ Power: 3-phase 200V Rated 6.0kVA ■ Options: Carton Conveyor, Case Merging Device *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Towa Techno Co., Ltd. is a packaging machine manufacturer specializing in food machinery. Since its establishment, the company has addressed hygiene issues in the food processing industry and developed products that create new food cultures. We aim to provide user-friendly, safe, and secure equipment, striving for manufacturing that protects the future of the global environment and food culture. Additionally, our automatic seaweed cutting and packaging machine has become a nationwide hit product, receiving high praise from customers.
