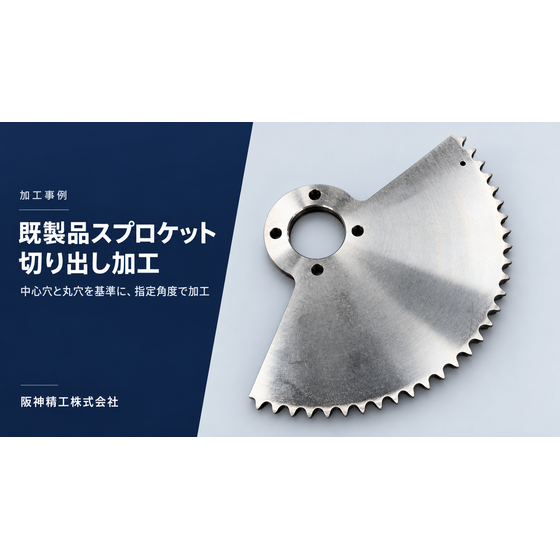

Leave the necessary dental parts of the ready-made product and cut it out to the specified shape. Determine the position based on the center hole and round hole, and accommodate additional processing with specified angles.
At Hanshin Seiko, we accept consultations for cutting and additional processing using off-the-shelf sprockets. The case presented involves cutting out the necessary tooth section from a standard sprocket and shaping it to the specified form using wire-cut electrical discharge machining. The rotational position was determined based on the center hole and round hole, and the processing was aligned to the specified angle. In additional processing of off-the-shelf products, the positional relationship between existing holes or teeth and the newly processed contour is crucial. The center position is captured from the center hole, and the direction of processing is determined based on its relationship with the round hole. Emphasis is placed on establishing a reference before processing, confirming the relationship between the existing shape and the processing position. For inquiries such as "I want to cut out part of an off-the-shelf product" or "I want to specify an angle relative to the reference hole," please send us the product specifications and processing drawings. We will confirm the material, dimensions, processing range, angle, tolerances, quantity, and desired delivery date to provide guidance.
Inquire About This Product
basic information
【Processing Details of the Case Study】 Target: Off-the-shelf sprocket Processing Method: Wire cut electrical discharge machining Processing Content: Cutting out to the specified shape while leaving the necessary tooth sections Positioning Reference: Center hole and round hole Center Position: Set based on the center hole Rotation Direction: Determined by the positional relationship between the center hole and the round hole Verification Items: Positional relationship between existing holes/tooth sections and the cut-out contour *Material, dimensions, specified angles, and tolerances will be confirmed in the product specifications and processing drawings. The feasibility of processing will be provided after confirming the shape to be retained and the processing range.
Price information
This is an individual estimate for each drawing. We will confirm the material, dimensions, processing range, angle specifications, required tolerances, quantity, and conditions for reference and retention of the ready-made products before providing the estimate.
Delivery Time
※We will confirm the product specifications, processing range, positioning conditions, quantity, and equipment operating status, and provide you with the information. Please let us know the planned delivery date for the product and your desired delivery date.
Applications/Examples of results
【Processing Results】 Cutting out the specified shape while leaving the necessary tooth parts from a standard sprocket. This is an example of processing based on the center hole and round hole to determine the position in the direction of rotation. 【Additional Processing Consultations】 - I want to cut out a part of a standard sprocket. - I want to change the outer shape while leaving the necessary tooth parts. - I want to specify the processing angle relative to the reference hole. - I want to align the positional relationship between the existing holes and the processed contour. *This is not the sale of standard sprockets, but a contract additional processing service for existing products.*
