Stop six-sided hole shape engraving discharge machining | High hardness materials, bottomed holes
For hexagonal holes that cannot be penetrated. You can check the dimensions of opposite sides, depth, inner corner radius, and orientation, and we can also discuss additional processing after hardening.

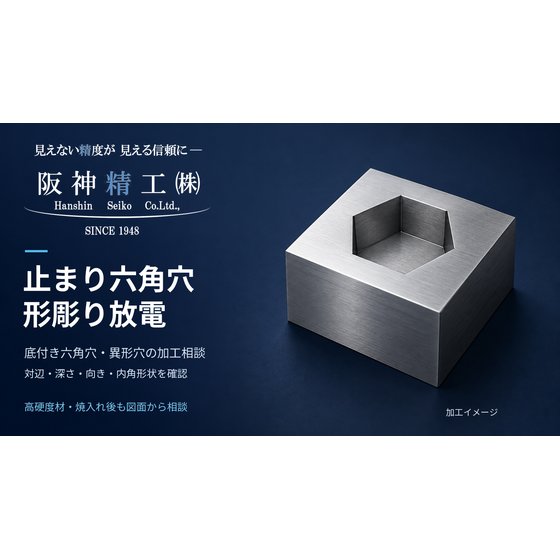

At Hanshin Seiko Co., Ltd., we can discuss the processing of stop hexagonal holes with a remaining bottom, primarily focusing on shape-cutting electrical discharge machining. We consider machining hexagonal holes in shapes where the inner corner curvature interferes with the counterpart parts, as well as additional processing of hexagonal holes in high-hardness materials and parts after hardening. We manufacture electrodes tailored to the hexagonal shape, taking into account the discharge gap and electrode wear. We verify not only the dimensions of the opposite sides but also the required insertion depth, inner corner radius, bottom surface shape, orientation of the hexagon, and the positional relationship with reference surfaces and other holes. Please feel free to consult us about integrated processing that combines wire cutting, machining, and grinding according to the shape. For quotations, please provide a top view and cross-sectional view, along with material, hardness, tolerances, and quantities. For additional processing on existing parts, we will check the current processing state and standards to inform you of the feasibility.
Inquire About This Product
basic information
■Target shape: Hexagonal hole with a bottom stop ■Main processing method: Shape engraving electrical discharge machining ■Target materials: Conductive materials. High hardness materials and hardened materials can also be consulted ■Shape confirmation: Side dimensions, hole depth, effective insertion depth, inner corner radius, bottom shape, entrance chamfer, remaining bottom thickness ■Position and accuracy: Angle position of the hexagon, relationship with reference surfaces and other holes, tolerances, surface roughness *Corresponding dimensions, depths, inner corner radii, and accuracy will be individually confirmed based on electrode shape and processing conditions. *Through hexagonal holes will be considered for alternative methods such as wire cutting, depending on the shape.
Price information
We will provide a customized estimate based on material, hardness, side dimensions, depth, required precision, electrode fabrication, and quantity. Please also provide a cross-sectional view that shows the bottom shape.
Delivery Time
※The processing details, electrode production, quantity, and condition of the work may vary. Please consult us with the planned supply date and your desired delivery date.
Applications/Examples of results
【Applications and Consultation Examples】 ■ Hexagonal hole machining for parts that cannot be penetrated ■ Hole machining for preventing rotation and fitting with counterpart parts ■ Hexagonal holes with specified insertion depth and bottom thickness ■ Machining that specifies the orientation of the vertices and flat surfaces of the hexagon ■ Additional machining for high-hardness materials and parts after hardening ■ Machining of internal angles considering interference with counterpart parts Please also provide documents that clarify the dimensions, angular shapes, and necessary gaps of the counterpart.
Company information
Hansei Seiko Co., Ltd. is a precision metal processing company founded in 1948, based in Kobe City, Hyogo Prefecture. We offer integrated processing services centered around wire cut electrical discharge machining, shape electrical discharge machining, and fine hole electrical discharge machining, as well as machining, polishing, finishing, and measurement. We welcome inquiries for precision parts, mold components, jigs, test pieces, and more, whether for single items, prototypes, or small lots. In addition to processing hardened steel, carbide, and stainless steel, we also handle contour machining of thick parts, key grooves, fine slits, and complex shapes. We confirm material, shape, required precision, and application, and consider processing conditions and processes. This reduces the burden of arranging multiple processing locations and supports part manufacturing. Based on the principle of "making according to the drawings," we conduct inspections and measurements in-house to confirm the finish before shipping. Based in Kobe and Hyogo, we accept processing inquiries and quotation requests from across the country. If you have parts you are struggling to process or drawings for which you would like to consider methods and processes, please feel free to consult with us. https://www.hansei.co.jp/
