Medium pressure sensor | Customization of pressure range and configuration is also possible

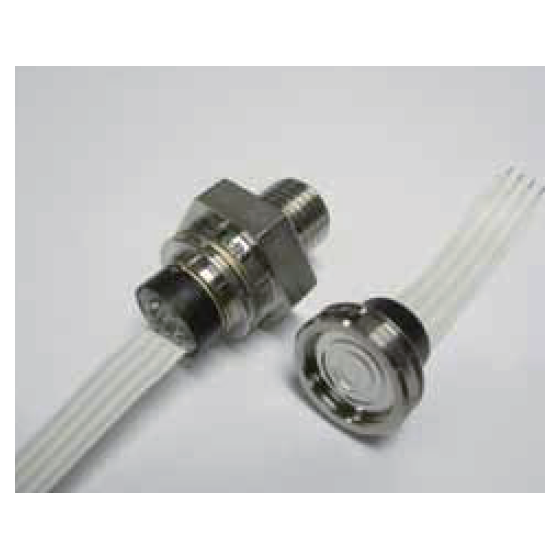

NPI-19 Series
Provides excellent sensitivity, linearity, and hysteresis of silicon sensors! Adopts SenStable technology.
The NPI-19 series is a medium pressure sensor equipped with advanced media-isolated sensor technology, offering OEM users the highest level of price and performance. 【Recommended for the following issues】 ◆ Excellent output stability ◆ Want to minimize temperature errors ◆ Want to design various pressure ports <Reasons for selection> ・High reliability of solid-state technology ・316L stainless steel, media-isolated design ・Static accuracy ±0.5% ・Temperature compensation 0 to 70℃ *For more details, please contact us via our website.
Inquire About This Product
basic information
- High sensitivity 100mV full-scale output (excitation current 1.0mA) - Linearity typically 0.1% full-scale output - Current-driven pressure range: 0 to 15psig (0 to 1bar), 0 to 250psig (0 to 17bar) gauge pressure or absolute pressure - Voltage-driven pressure range: 15, 30, 50, 100, 200, and 300 psi (1, 2, 3, 7, 14, and 20bar) gauge pressure or absolute pressure
Price range
Delivery Time
Applications/Examples of results
For more details, please contact us.
