Customization of configuration and pressure range is also possible! The piezoelectric pressure sensor die is isolated from the measuring medium by an oil fill layer within a stainless steel housing.

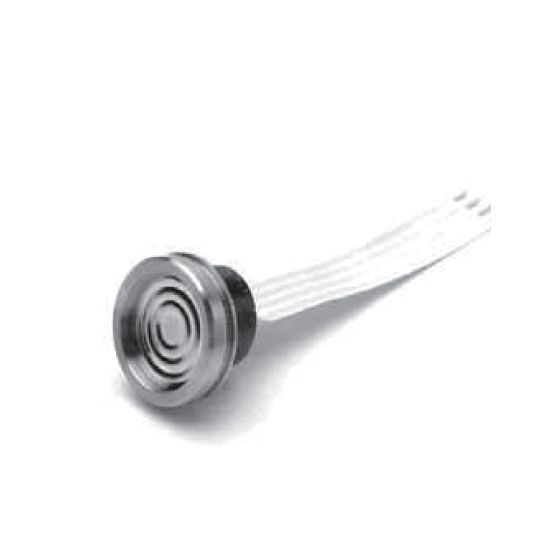

The NPI-19 series is a low-pressure sensor designed to operate in harsh environments, providing outstanding sensitivity, linearity, and hysteresis. 【Recommended for the following issues】 ◆ Operation in harsh environments ◆ Output stability <Reasons for selection> - Highly reliable semiconductor integrated circuit - 316L stainless steel, media-isolated design - Static accuracy ±0.5% - Temperature compensation 0 to 70°C *For more details, please contact us via our website.
Inquire About This Product
basic information
- 125mV rated full-scale output (current drive model) - 75±1mV full-scale output (voltage drive model) - Temperature error within 2% of full-scale output - Basic configuration: diameter 19mm × depth 7.1mm, cylinder sealing with O-ring recommended
Price range
Delivery Time
Applications/Examples of results
For more details, please contact us.
catalog（1）
Download All Catalogs
Company information
All Devices Co., Ltd. (formerly All Sensors Asia Pacific Co., Ltd.) was established on July 1, 2015. Our sensors, utilizing unique sensing technology, achieve high precision and stability, particularly in low-pressure and micro-pressure applications. We have gained support from companies that require accurate measurement of small pressures in fields such as medical, industrial, and IoT. Requests from our customers have expanded beyond differential pressure, leading to numerous inquiries and orders. We are now able to assist not only with fluid measurements such as pressure, flow rate, and wind speed but also with various sensors for temperature, oxygen, and even consulting services. In light of this progression, we have changed our company name to All Devices Co., Ltd. to reflect our capability to respond to any inquiries. Although we have changed our name, we will continue to provide support as the official representative office of All Sensors in the Asia Pacific region, just as we have in the past. We are committed to enhancing our expertise and international perspective to meet the expectations of even more customers. All Devices Co., Ltd. President and CEO, Tetsuo Hata
