Two dedicated models with a public rotation ratio of 1:-2.5 and 1:-3 to generate the high energy required for mechanical alloying.
It is a planetary ball mill that powerfully and quickly grinds down to the nanoscale.
Inquire About This Product
basic information

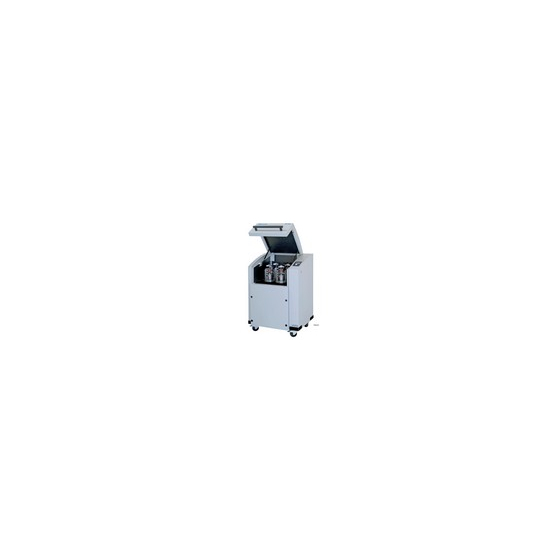

Powerful and rapid grinding down to the nano level The planetary ball mill achieves powerful grinding by combining two types of centrifugal forces: revolution and rotation. This significantly shortens the grinding time. The PM400MA is a dedicated model designed to generate the high energy required for mechanical alloying, with a revolution ratio of 1:-2.5 and 1:-3. It is equipped with four rotating platforms that can accommodate grinding jars ranging from 12ml to 500ml. By stacking grinding jars of up to 80ml, it can process eight samples at once. Additionally, a model with two rotating platforms is also available. With an effective revolution diameter of 300mm and a selectable revolution speed from 30rpm to 400rpm, it boasts powerful grinding capabilities, allowing for grinding down to submicron levels in a short time. 【Features】 ■ Supports long hours of continuous use ■ Equipped with a reverse function to reduce agglomeration ■ Stable rotation provides highly reproducible grinding results ■ Up to 10 grinding conditions can be registered ■ Condition input is interactive while viewing the LCD screen (displayed in Japanese) ■ Automatic ventilation for the grinding chamber ■ CE mark for compliance with European safety standards
Price information
-
Delivery Time
Applications/Examples of results
■ Agriculture ■ Biotechnology ■ Ceramics, Glass ■ Chemical Products ■ Building Materials ■ Environmental Testing ■ Pharmaceuticals ■ Metallurgy and Metallurgical Engineering
