Air Jet Sieve AS200 Jet for Classification and Grading
Air Jet Sheave AS200 Jet
Optimal for micron-sized particles! Gentle classification in a short time using jet streams.

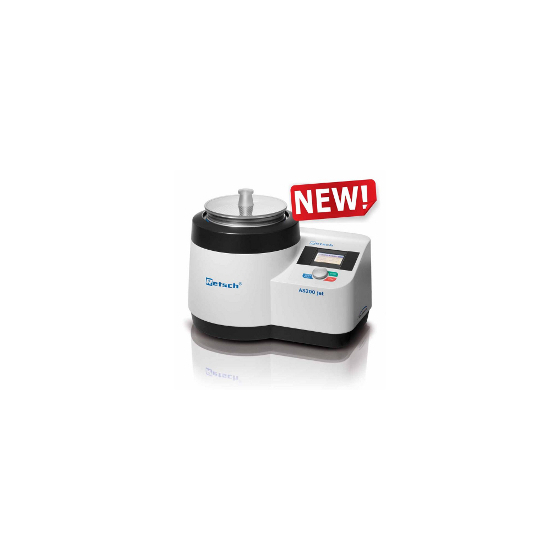

The "Air Jet Sieve AS200 Jet" classifies samples while dispersing them with a jet stream. It accommodates a wide range of sieving from 10μm to 4mm, making it ideal for classifying micron-sized particles that are prone to agglomeration. The airflow ejected upwards from the rotating nozzle prevents sample agglomeration and sieve clogging while classifying, allowing for gentle classification in a short time. An industrial vacuum cleaner is used to generate the jet stream, and operation is simple. ■ For more details, please contact us through the survey at the bottom. ■
Inquire About This Product
basic information
This is a classification and sorting machine using air jets. Airflow is ejected from a rotating nozzle positioned below a Φ200mm sieve, dispersing the sample above the sieve. Particles smaller than the sieve mesh fall down and are sucked into a vacuum cleaner. ◆ Capable of sorting micron-sized fine particles, with a wide range It accommodates sizes from 10μm to 4mm. ◆ Short time The average sorting time is 2 to 3 minutes. ◆ Gentle on samples No sieve auxiliary materials are used. ◆ Clogging prevention The rotating nozzle performs a reciprocating motion, advancing 20° and then returning 10° repeatedly. ◆ Easy operation Sieve time and nozzle rotation speed can be set with one button. Sorting conditions can be registered for up to 9 items. With the Letcher classification evaluation software "EasySieve," classification evaluation and document creation can be done easily.
Price information
-
Delivery Time
Applications/Examples of results
It is ideal for the classification of powders such as catalysts, rubber, toner, plastics, chemical products, cosmetics, pharmaceutical raw materials, powder coatings, powdered detergents, building materials, pigments, minerals, ceramics, and food. For the classification of samples that tend to clump, such as starch and wheat.
