L-shaped retaining wall, Millwall, HI Millwall, design Millwall

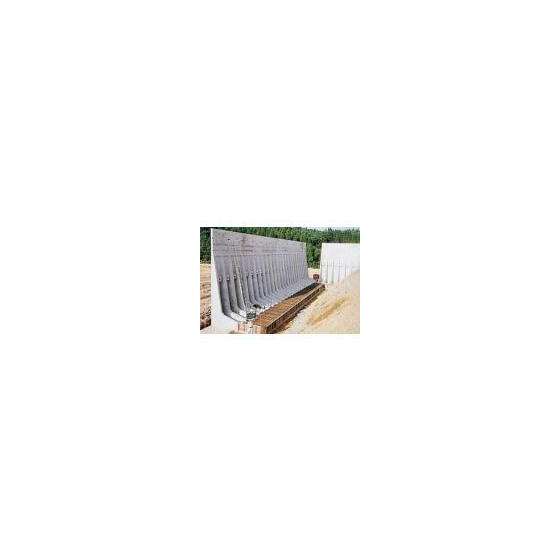

This is an L-shaped retaining wall that complies with the guidelines for road geotechnical retaining walls.

This is a product that primarily adopts a retaining wall type L-shaped design, combining lightweight and strength. We offer sizes ranging from H=600 to 7000. Here is the information on Millwall, HI Millwall, and Design Millwall. ○ Millwall: We have sizes available from H=600 to 3000 in increments of 100 mm. For inner curve construction, we can accommodate a minimum radius of R=30 m for road curves. ○ HI Millwall: We have sizes available from H=3100 to 7000 in increments of 100 mm. ○ Design Millwall: We have sizes available from H=900 to 3000 in increments of 100 mm. Similar to Millwall, we can also accommodate a minimum radius of R=30 m for inner curve construction. The design features a stone wall pattern with a design thickness of 35 mm. (If you require specifications other than the sizes mentioned above or designs other than the stone pattern, please contact us.)
