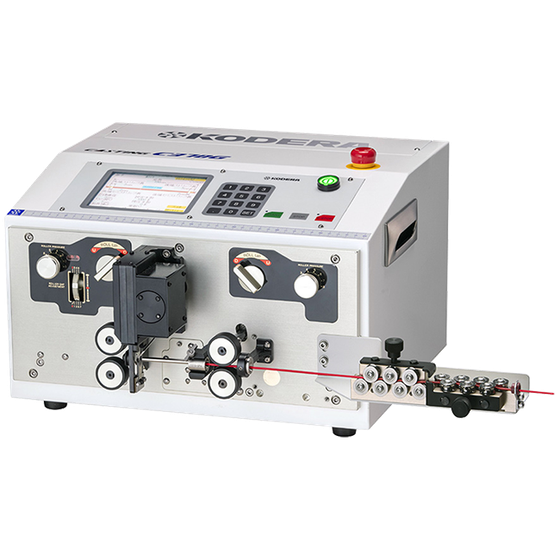

Achieving speed suitable for mass production and high production capacity in a compact body. It also demonstrates its power in small-lot production of various types.
■Can process wire materials from AWG#32 to #10. The fastest machine!! ■Compact body that condenses functionality and safety. ■With optional accessories sold separately, twisting of core wires is also possible!! Achieves speed suitable for mass production and high production capacity in a compact body. It also demonstrates power in small lot production of various types. The operation panel features color-coded switches by function to prevent misoperation and is equipped with an LCD display. It promotes reliable operation through a dialogue method. A new function allows processing of residual stripping dimensions up to 30mm in normal mode, and it can perform a variety of processing such as cutting, stripping, semi-stripping, and hollowing out, with the capability to store up to 200 types of wire processing setting data.
Inquire About This Product
basic information
Dimensions: Width 430mm × Depth 450mm × Height 270mm Weight: 26kg Cutting length: 0.1mm to 99999mm Cutting tolerance: ±(0.1+0.0005×L)mm (depending on wire material) *L is the cutting length Strip length: Front 0.1mm to 30mm, Rear 0.1mm to 30mm Wire types that can be processed: AVSS, VSF, IV, KV, UL, Teflon, glass wire, etc. Wire sizes that can be processed: AWG#10 (5.5sq) to #32 (0.03sq) (depending on wire material) Maximum wire outer diameter size: φ6mm Blade material: Ultra-fine particle alloy Manufacturer: K.K. Kodera Electronic Manufacturing
Price information
1,600,000 yen (excluding tax)
Price range
P5
Delivery Time
P3
※Delivery times may vary depending on stock availability, so please feel free to contact us.
