Powerful dual 4WD stripping unit capable of processing up to φ22mm).

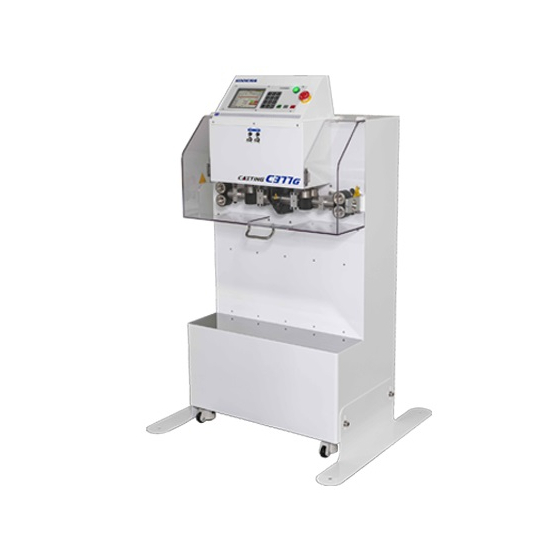

The "C377G" by Kodera Electronics is a heavy-duty, fully automatic wire cutting and stripping machine that boasts incredible driving power, handling everything from large 100sq (AWG#4/0) heavy-gauge cables down to 1.25sq (AWG#16) medium-fine wires. Its standout feature is an independent motor drive system for all eight feed rollers. The four pairs of rollers are designed with a double-opening mechanism, keeping the feeding alignment perfectly centered regardless of the wire thickness. This minimizes damage to the wire surfaces while delivering consistently high precision and stable processing in a true high-spec model.
Inquire About This Product
basic information
【Specifications】 ○Model: C377G ○Applicable wire size: AWG#4/0 (100 sq) to AWG#16 (1.25 sq) *depending on the wire material ○Maximum cutting outer diameter: φ22mm *depending on the wire material ○Cutting length: 0.1mm to 99,999mm ○Cutting tolerance: ±(0.1 + 0.0005 × L) mm *L is the cutting length ○Strip length: Tip 0.1~114mm, Rear end 0.1~99mm ○Blade material: Ultrafine particle alloy ○External dimensions: Width 710mm x Depth 470mm x Height 1,400mm ○Weight: 156kg ○Power supply: AC100V to AC240V (single phase) 50Hz/60Hz ○Air source: 8 Nℓ/min 0.5 MPa *Please use clean dry air ●For more details, please contact us or download the catalog.
Price information
4,807,000 yen (excluding tax)
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or contact us.
