Fully Automatic Wire Cutting and Stripping Machine "Casting C371A"
C371A

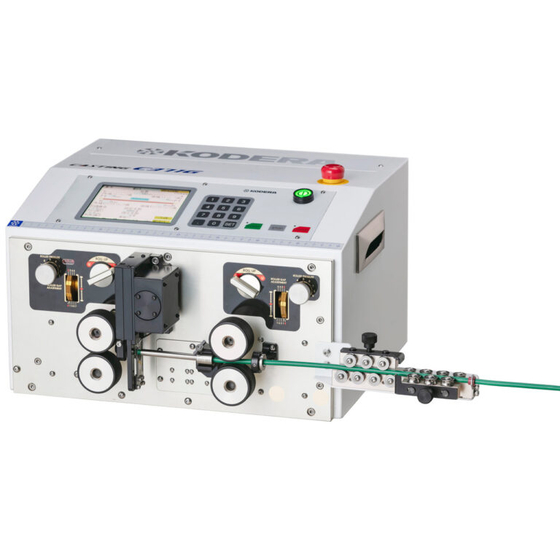

This is the Koteri Electronic Casting C371A fully automatic wire cutting and stripping machine.
High speed & high power! The birth of a super high-grade machine that has evolved further! Based on the Casting C351, which is a representative model of the casting series, Koder Electronics has developed an even higher-grade machine with unique new ideas and technologies. The processing speed is about twice that of the conventional C351. Of course, the optional parts for the C351 can be used as they are. The super high-grade machine, Casting C371A, has been born with a renewed body color. For more details, please download the catalog.
Inquire About This Product
basic information
【Specifications】 ○Model: C371A ○Dimensions: Width 430mm × Depth 420mm × Height 270mm ○Weight: 27kg ○Power Supply: AC100V 50Hz/60Hz ○Cutting Length: 0.1mm to 99999mm ○Cutting Tolerance: ±(0.1+0.0005×L)mm (depending on wire material) *L is the cutting length ○Strip Length: Front 0.1mm to 47.9mm, Rear 0.1mm to 47.9mm ○Compatible Wire Types: AVSS, VSF, IV, KV, UL, Teflon, Glass Wire, etc. ○Compatible Wire Sizes: AWG#7 (10sq) to #28 (0.08sq) *depending on wire material ○Compatible Wire Outer Diameter: Maximum φ11mm ○Wire Feed Speed: Variable ○Blade Material: Ultra-fine particle alloy ○Manufacturer: Koder Electronics Co., Ltd.
Price information
Please contact us.
Price range
P5
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or contact us.
catalog（1）
Download All Catalogs
Company information
We are a company that sells and maintains wire harness processing machines. <Handled Wire Processing Equipment> Wire stripping machines, wire cutting machines, terminal crimping machines, tube cutting machines, cable cutting machines, fully automatic terminal crimping machines, fully automatic soldering machines. <Handled Wire Processing Equipment Manufacturers> KODERA (Kodera Electronic Manufacturing) , Union Machinery, Hakkou Electric, Trusoltech, Nippon Continuous Terminal, KOMAX, Schleuniger. <Sold Materials> Crimp terminals, electric wires, multi-core cables, flat cables, tubes, connectors, housings. <Material Handling Manufacturers> Yazaki, Sumitomo Electric, Tokai Rika, Furukawa Electric, Mitsubishi Electric Wire, Ryosei Electric, Nippon Terminal, TYCO, JST, Hirose Electric, JAE, Misawa Electric Wire, Sumitomo Electric Industries, Klabe.
