A high-power automatic cutting machine that far exceeds imagination.

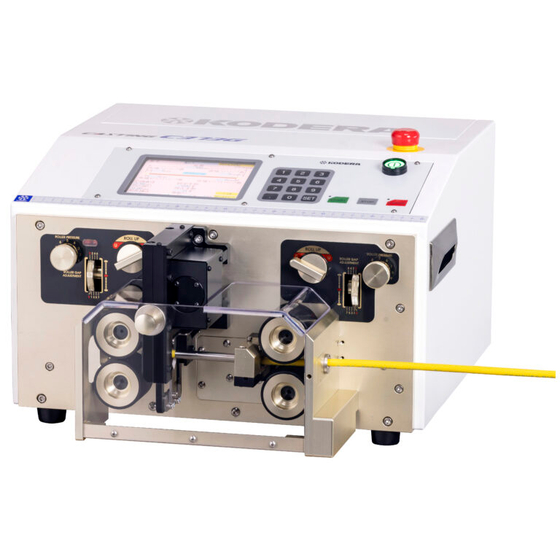

The "C373G" by Kodera Electronics is a high-performance, fully automatic wire cutting and stripping machine that serves as the company's core mid-range model. It specializes in wire sizes from AWG#10 to 32 (0.03 to 5.5sq), which are the most widely used gauges for wiring in electronic devices and control panels. Utilizing a system of four pairs (eight rollers in total) of independently driven rollers, it securely grips and accurately feeds wires to thoroughly prevent stripping errors and damage to the inner strands. Despite its compact footprint, it boasts outstanding processing precision and durability, making it a highly reliable model that excels in a variety of workspaces.
Inquire About This Product
basic information
【Specifications】 ○Model: C373G ○Dimensions: Width 450mm x Depth 530mm x Height 290mm ○Weight: 37kg ○Power Supply: AC100V-240V (single phase) 50Hz/60Hz ○Power Consumption: 26Wh (standby) 102Wh (maximum when operating) ○Cutting Length: 0.1mm to 99,999mm (adjustable range) ○Cutting Tolerance: ±(0.1 + 0.0005 × L) mm (depending on wire material) *L is the cutting length ○Strip Length: Tip length 0.1–47.9mm, rear length 0.1–47.9mm (use short wire mode if the remaining insulation is less than 47.9mm) ○Compatible Wire Types: AMLFC, AVSS, VSF, IV, KIV, KV, UL, Teflon TM wire, glass wire, tubes, flat cables, etc. ○Compatible Wire Sizes: AWG#2(30sq)～AWG#28(0.08sq) *depending on wire material ○Compatible Wire Outer Diameter: Maximum φ15mm *depending on wire material ●For more details, please contact us or download the catalog.
Price information
2,500,000 yen (excluding tax)
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or contact us.
