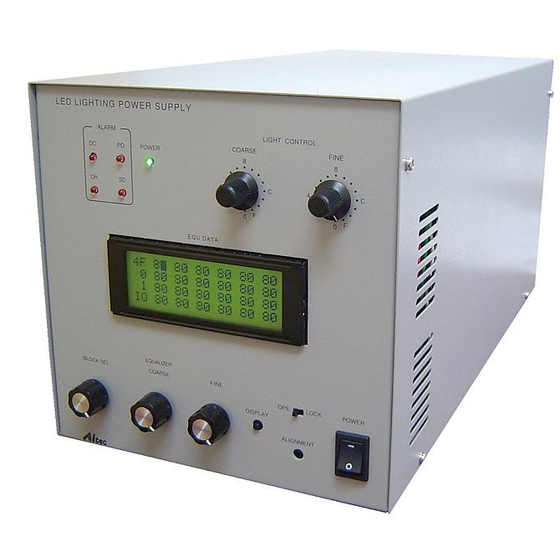

Constant Current Lighting Power Supply LPDCH Series
LPDCH1-48150NCW-R*～LPDCH1-481R5KNCW-R*
★High-end digital setting type★
● This is a high-performance LED lighting power supply for advanced image processing (high-end digital setting model). It is a direct current constant current driving method that varies the current flowing to the LED lighting for operation and dimming. ● Communication functions: RS232C, parallel port (standard equipment), LAN, USB (optional) available. ● LED disconnection alarm (standard equipment), LED overheating alarm, and LED overheating shutdown (optional), as well as optical feedback control range over (optional) functions are available. ● The automatic cable compensation function (standard equipment) automatically corrects voltage fluctuations with the push of a button when changing the cable length between the LED lighting and the power supply.
Inquire About This Product
basic information
Drive method: Constant current method Dimming method: Digital setting Output channels: 1ch Output voltage (V): Rated voltage DC 48V (can be manufactured for various voltage specifications) Rated power supply voltage: AC 100-240V Overall dimming range: 0-100% Light distribution control range: Approximately ±30% Internal dimming: Overall dimming: Front panel rotary switch (256 levels via COARSE and FINE) Light distribution control: Front panel rotary encoder (256 levels via COARSE and FINE) External dimming: PARALLEL (only overall dimming, light distribution control is internal) RS232C (overall dimming and light distribution control) USB or LAN (overall dimming and light distribution control) *Optional (choose one) Operating environment: Temperature: 0-40℃, Humidity: 20-85%RH (no condensation), indoor lighting equipment Storage environment: Temperature: 0-60℃, Humidity: 20-85%RH (no condensation)
Price range
Delivery Time
※Please contact us.
Applications/Examples of results
Steel plate inspection, glass inspection, sheet inspection, metal surface inspection, edge inspection, for image processing, for visual inspection, for line sensors (line cameras), for area sensors (area cameras).
