Three types of heads allow for easy application of both thin and thick films! A test coater that can apply and UV cure.

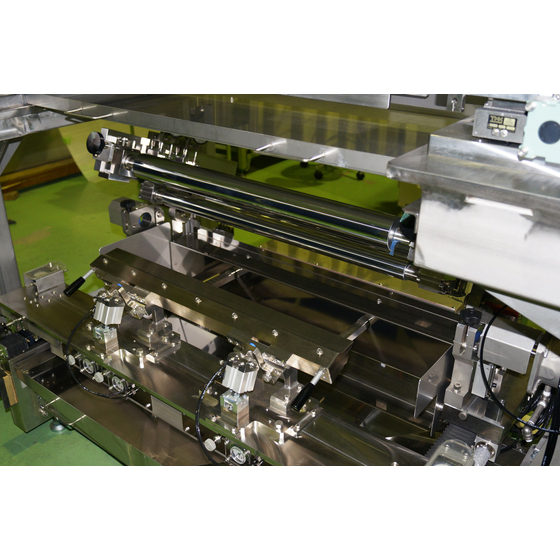

The "UVS-700," enhanced with "UV irradiation functionality," is the latest model of a test coater that can be used for various purposes, from "development testing" to "user sample testing." It is equipped with three types of coating heads, making it usable for coatings of any viscosity, from thin films to thick films. It has achieved even higher precision in testing and prototype production compared to previous models. 【Features】 ■ Maximum coating width: 700mm ■ Three types of coating heads available! 1＞ Micro gravure head with proven results for thin films (latest specification) 2＞ Slot die head capable of handling both thin and thick films 3＞ Versatile knife head ■ Wet lamination is also possible ■ Three UV irradiation units are permanently installed The first UV irradiation unit is dedicated UV immediately after wet lamination The second UV unit can perform nitrogen purging with a maximum output of 240W The third UV irradiation unit has a maximum output of 120W
Inquire About This Product
basic information
Specializing in various coating technologies, Lab Co., Ltd. has introduced the latest test coater, the 'UVS-700', contributing to the development testing and prototype production, achieving even higher precision coating! 【Other Specifications】 ■ Lamination Types - Dry Lamination (Heat lamination possible) - Wet Lamination (Clearance adjustable) ■ Drying Oven Section - Hot air roll support - 5 zones, approximately 6.5m ■ Coating Width (Maximum) 700mm For more details, please refer to the 【Free Catalog】.
Price information
Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
For more details, please feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Currently, we have established a lab in the United States, and we also have plans to create a lab in Europe (the UK). We also have plans to build a prototype production facility. After experiments, before transitioning to mass production, our company will conduct small-scale production, allowing companies considering purchasing machinery to avoid unnecessary production risks. We have already received inquiries from several companies regarding this facility. However, we intend to grow primarily as a research support company.
