Prevents backflow of external water during floods and high tides! Stainless steel flap gate.

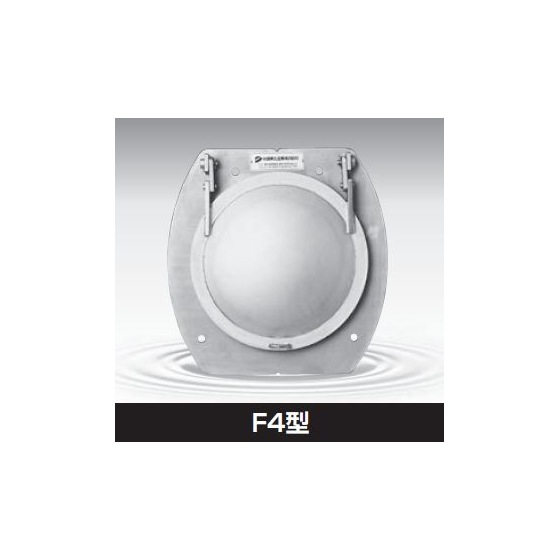

The "F4 type" and "F5 type" are stainless steel flap gates designed to prevent backflow of external water during floods or high tides. They excel in corrosion resistance and waterproofing, and achieve high pressure resistance by having a spherical surface. The arms are supported at two points, allowing for smooth opening and closing, which enhances water tightness. With minimal protrusions, they effectively prevent debris accumulation. The "F4 type" is wall-mounted (all-anchor type), while the "F5 type" is band-fixed. 【Features】 ○ High corrosion resistance and waterproofing ○ Direct attachment to pipes possible (F5 type only) ○ Allowable water depth: within 3.5m to 5.0m For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Specifications】 〔F4 Type〕 ○Main Material: SUS304 ○Applicable Water Depth (Bottom of Pipe to H.W.L): 5000mm / 3000mm ○Mounting Method: All Anchor (M12x100) 〔F5 Type〕 ○Main Material: SUS304 ○Applicable Water Depth (Bottom of Pipe to H.W.L): 5000mm / 3000mm ○Mounting Method: Band Type ●For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
Company information
Chubu Beautification Corporation has been involved in the development, production, and sales of water-related products since its establishment in 1966, contributing to the advancement of agriculture and water supply and sewage sectors nationwide. As we enter the 21st century, we are increasingly aware of the rapid changes in social conditions and the growing impact of changes in the natural environment surrounding people. We strive to be a good advisor and a collaborative partner for everyone in the fields of water and civil engineering, focusing on creative actions and technological improvements. We consider it our mission to contribute to the creation of a safe and comfortable living environment for the people in the region. Looking towards the future of people and the environment, we deliver reliable products. We appreciate your continued support.
