Anomaly detection in various processes. For example, by attaching a force sensor to the pressing machine, it can detect not only missing parts but even burrs on the side being pressed!
maXYmos TL is a unit that displays two interrelated measurements as waveforms on an X-Y diagram and monitors the manufacturing process based on those waveforms. It is also capable of displaying sensor signals as waveforms over time and monitoring based on those waveforms. maXYmos TL comes with numerous criteria (thresholds) for judgment, enabling in-process monitoring that caters to various manufacturing processes. 【Features】 - Built-in amplifiers for piezoelectric and strain gauge sensors - Supports encoder signals - Display and operation via a 10.4-inch touch panel color display - Offers many criteria (thresholds) for pass/fail judgment - Allows setting of up to 10 pass/fail criteria - Can connect up to 8 monitoring modules to a single display module - Compatible with CC-Link
Inquire About This Product
Related Videos
basic information

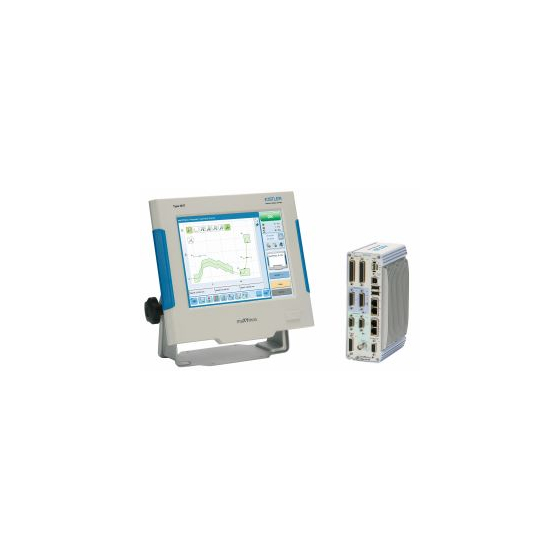

The maXYmos TL consists of two main modules. The "Measurement and Evaluation Module (MEM)" collects sensor signals and performs monitoring based on their waveforms, and the "Display Module (DIM)" has a touch panel for displaying waveforms and setting criteria (thresholds). The Display Module (DIM) can connect up to eight Measurement and Evaluation Modules (MEM). For example, it can flexibly accommodate a simple system using one Measurement and Evaluation Module (MEM) and one Display Module (DIM) to monitor a single pressing process based on the relationship between force and displacement, or a more complex system using multiple Measurement and Evaluation Modules (MEM) to simultaneously monitor a composite assembly process. Additionally, the maXYmos TL includes evaluation criteria (thresholds) that utilize slope, inflection points, hysteresis, and averages, in addition to those available in the lower model, the maXYmos BL (Basic Level) model 5867B..., enabling advanced monitoring of manufacturing processes.
Price range
Delivery Time
Applications/Examples of results
• Monitoring of the press-fitting process for ball bearings and valve seats • Monitoring of the fastening process using crimping and riveting • Monitoring of the snap ring installation process • Inspection of connector insertion force and withdrawal force • Inspection of tactile switches and rotary switches • Operation confirmation testing of shock absorbers, etc.
