Various high-precision strength tests can be performed with a single unit!

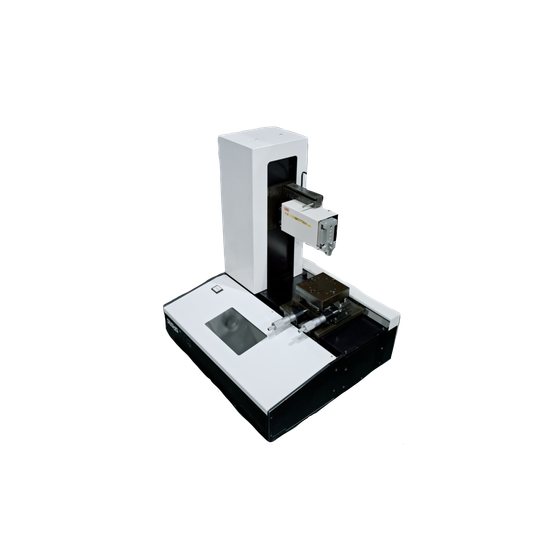

The "SS-30WD" is a device that enables various high-precision strength tests, such as wire pull tests and die shear tests, which are necessary for the inspection in the chip LED manufacturing process, all in one unit. Data management of measurement results and setting of measurement parameters can also be managed and configured using the included PC. Additionally, measurements can be conducted while heating as an option. We create various measurement jigs tailored to your measurement methods. We have delivered numerous devices for both LED development and mass production. 【Features】 ■ High reliability ■ Multiple product tests possible with one unit ■ Customizable measurement stage ■ Issuance of calibration certificates from JQA *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Basic Specifications】 ■ Measurement range of each load cell (strain gauge type) non-linearity 0.015FS ○ Type: I ・ 3kg type: 20g～3000g ・ 15kg type: 0.1kg～15kg ・ 25kg type: 0.2kg～25kg ・ 50kg type: 0.4kg～50kg ○ Type: II ・ 3kg type: 2g～300g ・ 15kg type: 10g～1500g ・ 25kg type: 20g～2500g ・ 50kg type: 40g～5000g ■ Measurement speed: 0.006mm/sec～1mm/sec ■ Data output: RS-232C ■ Load measurement accuracy: ±0.1%FS ■ Power supply: AC100V 1A ■ Axis adjustment range ・ 100mm (X, Z Direction) ・ Microstep motor drive ・ 0.025μ/pulse ■ Weight: Approximately 75kg ■ Other functions ・ Auto zero correction ・ Safety stop function ・ Auto step back function ・ Setting of dead zone load ・ Auto return function after measurement * For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Inspection in the chip LED manufacturing process, etc. *For more details, please refer to the catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Since its establishment on March 10, 1952, Seishin Shoji Co., Ltd. has introduced a variety of products to the domestic market. As a trading company, it has particularly contributed to the field of analysis, starting with the import of analytical standard materials. Additionally, while it has been active as a technical trading company in the electronic components industry, in recent years it has expanded not only as a trading company but also into the design and manufacturing of new electronic devices, making significant strides in the manufacturing sector and achieving a wide range of activities both domestically and internationally.
