High-speed synchronous communication between drive devices is possible with a single unit! Approximately 30% space-saving compared to conventional models!

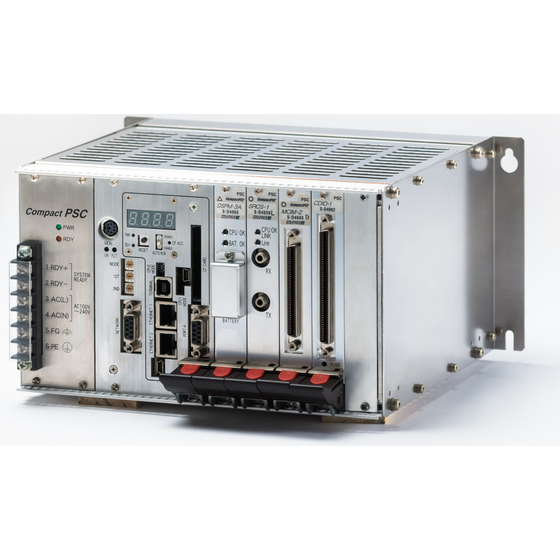

The "Compact PSC" is a programmable servo controller that enables high-speed synchronous communication between our drive devices via SERCOS communication. The "inter-device communication function," which was previously an optional card feature in the conventional "PSC7000 series," has been integrated into the main module. Additionally, it features a compact design that reduces the installation area by approximately 30% compared to previous products, allowing for space-saving installation. 【Features】 ■ High-speed calculations of 150 MFLOPS are possible due to the adoption of a high-speed DSP ■ Up to 10 axes can be controlled simultaneously at high speed in one rack (when using PG input and analog output) ■ Storage of abnormal information and production records can also be achieved at the application level ■ The MC protocol, a field network, is standardly equipped *For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Inquire About This Product
basic information
【Main Specifications】 <Compact PSC> ◎ Main Module: Model No. WR-D4013 ◎ cPCI Slots: Equipped with 5 slots Occupies 2 slots by default (DSPM card, MCIM card) ◎ Auxiliary Storage: Compact Flash memory card (PCCard ATA compliant) ◎ External Connections USB Port (Type B): Programming terminal connection (USB 2.0) Ethernet: MC protocol, EtherNet/IP ◎ Dimensions: W271×H134.4×D250mm <DSPM Card> ◎ Processing Type: Multi-tasking, real-time processing ◎ DSP: TMS320VC33PGE-150 (TEXAS INSTRUMENTS, 75MHz) ◎ Processing Speed - BASIC Task: Real number (32bit) addition 0.67μSec - PC Ladder Task: Contact 0.013μSec, Coil 0.013μSec - Control Block: Real number (32bit) addition 0.013–0.08μSec <MCIM Card> ◎ Analog Output: 5 channels (common shared) ◎ PG Input: 5 channels (A phase, B phase, Z phase) Total 15 inputs
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the materials or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
REJ Corporation was established in 1964 as Nihon Reliance Co., Ltd. and changed its name in 2019. Since its founding, we have consistently contributed to our customers and society with optimal motor control technology for industrial machinery. We provide a comprehensive range of services including "control device development," "control device manufacturing," and "system design and startup." Additionally, we are engaged in system integration business tailored to our customers' needs. Main industrial sectors: Steel (metal and non-ferrous), coil centers, automotive-related, printing machines, paper and cardboard, film processing, plastic molding, textiles, semiconductor manufacturing equipment, various conveyor systems, etc.
