A sintering device capable of uniform heating and uniform pressure! Temperature, time, and pressure can be accurately controlled!

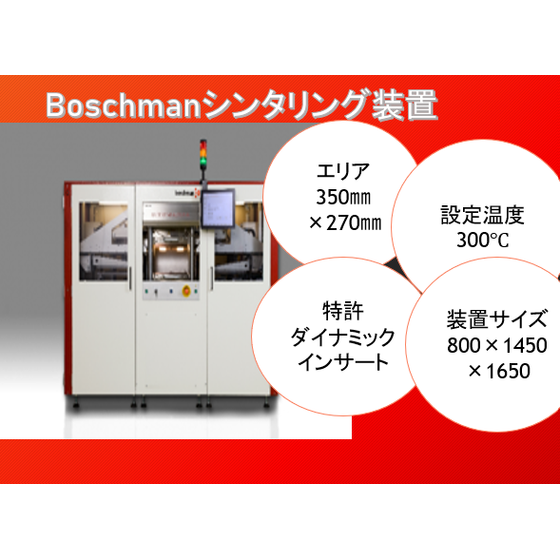

The "Sinterstar" patented device utilizes unique dynamic insert technology for silver sintering (Ag sintering). It achieves uniform heating and uniform pressure. "Simplicity" It allows precise control of temperature, time, and pressure. Temperature changes are graphically displayed in real-time. "Contribution" It contributes to the manufacturing of power modules and multi-devices. "Benefits" Sintering temperature can be set up to 300°C. Preheating lamp, sintering lamp, and cooling lamp can each be set individually. The height of components can be adjusted with five adjustment plates on the drawer side. The flow control valve for N2 protective gas allows for adjustment even after components are set in the insert drawer. [Features] ■ Uniform heating and uniform pressure ■ Precise control of temperature, time, and pressure ■ Setup change within 25 minutes ■ Real-time temperature graphing ■ Easy operation via GUI *For more details, please refer to the PDF document or feel free to contact us. # Sintering # Uniform pressure # Sintering device
Inquire About This Product
basic information
【Specifications】 ■Size: 800×1450×1650mm ■Sintering Area: Maximum 350×270 ■Air: 5 bar ■Power Supply: 3-phase 200V 40～68Hz 4kW (average) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Examples of Use】 ■ Power Modules ・Multi-dip devices ・DBC substrates ■ LEDs ・Individual edge multi-devices ・DBC lead frame substrates ■ Automotive ・Hybrid vehicles ・Electric vehicles ■ Power Discretes ・Individual edges (dies) ・Lead frames ■ Others ・High-speed rail ・Wind power generation, etc. *For more details, please refer to the PDF materials or feel free to contact us.
