It is used in research and development, quality control of raw materials, intermediates, and final products, and in product inspection departments.

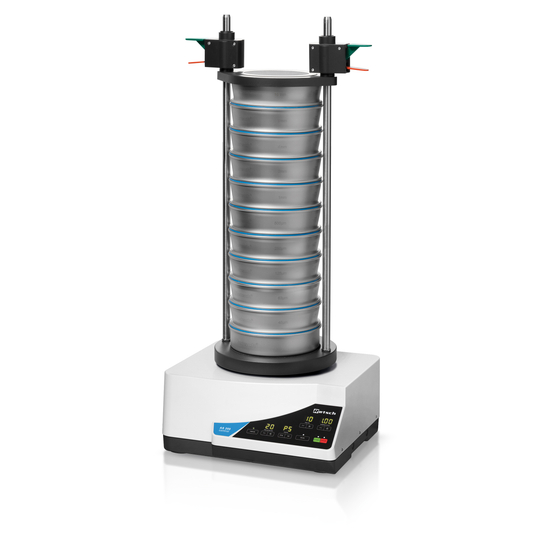

- NEW: Up to 99 condition registrations - NEW: Quiet operating sound with optimized controls - NEW: Equipped with a USB interface compatible with the classification evaluation software EasySieve - Compatible with both dry and wet processes - Efficient sieving in a short time - Effective electromagnetic shaking - Three-dimensional classification with vertical, horizontal, and twisting effects, allowing the sample to evenly shake across the entire mesh surface. - By setting the acceleration "g" of the sieve bottom, classification results can be compared globally - Maximum sieve frame size: 620 mm (optional) - Time, amplitude, acceleration, and interval can be digitally set. - Intermittent operation possible - Optionally, the classification evaluation software EasySieve can be used. This allows for remote operation of the sieve shaker, evaluation of classification results, and documentation (in English/German). - Ideal for sample monitoring in compliance with ISO9001 and other international standards - Calibration possible; inspection certificate issuance - Easy to operate with an ergonomic design - Maintenance-free
Inquire About This Product
Related Videos
basic information
Measurement range: 20 µm - 25 mm Classification method: Three-dimensional motion Maximum input amount: 3 kg Number of classifications: 11 / 23 Maximum sieve frame weight: 6 kg Vibration width: Digital, 0.2 - 3 mm Amplitude control: Yes Acceleration setting: 1.0 - 15.1 g Time display: Digital, 1 - 99 minutes Interval mode: 1 - 99 s SOP setting available: 99 Dry classification: Yes Wet classification: Yes USB interface: Yes Calibration certificate: Yes Usable sieve diameters: 100 mm / 150 mm / 200 mm / 203 mm (8") Maximum sieve height: 620 mm Clamp unit: Type B, Type A supports both dry and wet classification Protection rating: IP 54 / IP 20 Voltage: 100-240 V, 50/60 Hz Power supply: Single-phase W x H x D: 417 x 212 x 384 mm Body weight: ~ 35 kg Standard: CE
Price information
-
Delivery Time
Applications/Examples of results
[Applications] - Classification of activated carbon, abrasives, refractory materials, silica gel, diamonds, etc.
catalog（2）
Download All Catalogs
Company information
Varda Scientific covers a wide range of products, from sample grinding, crushing, homogenization, and heat treatment for laboratory use, to particle size measurement, component analysis, cutting, polishing, embedding, and hardness testing. Varda Scientific has five brands: Leco, QATM, Carbolite Gero, Eltra, and MRB. Since 1999, we have been operating as Leco Corporation, handling products from Leco and Leco Technology. On January 1, 2014, we began handling Carbolite Gero, and at the same time, in line with the increase in the number of brands we handle, we changed our company name to Varda Scientific Corporation. In 2018, we started handling ATM and Qness, and in June 2019, MICROTRAC and Microtrac Bell joined the Varda Scientific Group. As of May 1, 2020, ATM and Qness merged to become QATM, further enhancing our capabilities and allowing us to better meet our customers' needs.
