Compatible with a Φ305mm test sieve! Achieves efficient sieving in a short time!

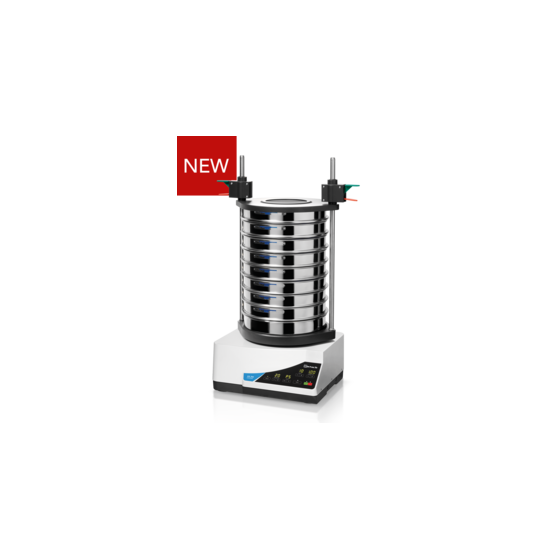

The electromagnetic sieve shaker "AS300" employs an adjustable amplitude electromagnetic drive, making it suitable for classifying various types of samples. It is a sieve shaker that can effectively separate materials even in a short amount of time. The "AS300 Control" is compatible with a test sieve of Φ305mm, which has a mesh area 2.25 times larger than that of a Φ200mm test sieve, significantly reducing classification time. Additionally, all operating conditions can be set digitally, and a calibration certificate is included as standard. This model is suitable for experiments requiring higher reproducibility and operability. 【Features】 ■ Up to 99 condition registrations ■ Quiet operation due to optimized control ■ USB interface compatible with classification evaluation software EasySieve ■ Suitable for both dry and wet sieving ■ Efficient separation in a short time ■ Effective electromagnetic shaking ■ Three-dimensional classification with vertical, horizontal, and twisting effects, allowing samples to evenly shake across the entire mesh surface ■ Calibration possible; inspection certificate issuance ■ Maintenance-free *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■ Nature of input samples: Powder, bulk materials, suspensions ■ Measurement range: 20 µm - 40 mm ■ Classification method: Three-dimensional motion ■ Maximum input amount: 6 kg ■ Number of classifications: 9 / 17 ■ Maximum sieve weight: 10 kg ■ Vibration amplitude: digital, 0.2 - > 2.20 mm ■ Amplitude control: Yes ■ Acceleration setting: 1.0 - > 10.0 g ■ Time display: Digital, 1 - 99 minutes ■ Interval mode: 1 - 99 s ■ Calibration certificate: Yes ■ Maximum sieve height: 510 mm ■ Clamp unit: Type B, Type A supports both dry and wet methods ■ Protection rating: IP 54 / IP 20 ■ Voltage: 100-240 V, 50/60 Hz ■ Power supply: Single phase ■ W x H x D: 417 x 220 x 384 mm ■ Weight: ~ 42 kg ■ Standards: CE *For more details, please refer to the PDF document or feel free to contact us.
Price information
-
Delivery Time
Applications/Examples of results
【Purpose】 ■ Screening and classification 【Fields】 ■ Engineering / Electronics, Glass / Ceramics, Bio, Chemicals / Chemical Products, ■ Geology / Metallurgy, Materials Science, Construction Materials, Environment / Recycling, Pharmaceuticals / Drugs, Agriculture, Food *For more details, please refer to the PDF document or feel free to contact us.
