Suppresses workpiece lifting! Shield structure that prevents chips from entering the spindle screw area.
This product is a machine vice compatible with 5-axis machining centers. The 'GT5' has a workpiece gripping position that is distanced from the machine table, making it less likely for the spindle or tools to interfere with the machine table or vice. The 'ST5-2G/IMG' features a sealed structure that prevents chips from entering the threaded part of the spindle, thus preventing operational failures. 【Features】 ■ Compact design makes it suitable for close proximity to the machine spindle ■ Easy adjustment of gripping force ■ Mounting surface compatible with zero-point clamping systems (APS/WPS) ■ A wide range of standard accessories available *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information

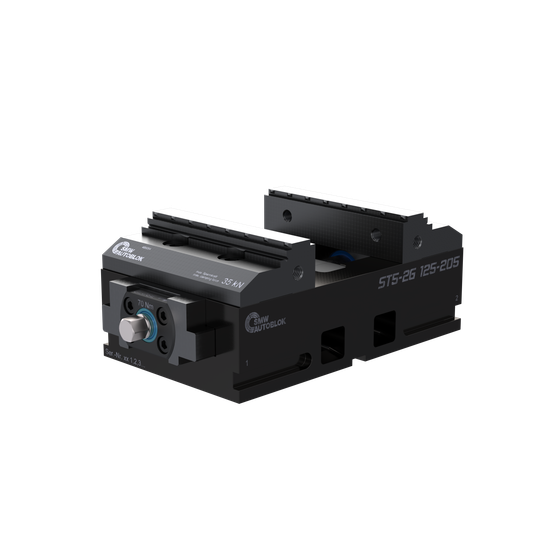

【Lineup (Excerpt)】 ■ST5-2G 080-120 ■ST5-2G 125-170 ■ST5-2G 125-205 ■ST5-2G 125-320 ■ST5-2G 125-480 ■ST5-2G 125-625 ■IMG 88-130 ■IMG 125-180 ■IMG 125-220 ■IMG 125-320 ■IMG 160-270 ■IMG 160-420 *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（2）
Download All Catalogs
Company information
SMW-AUTOBLOK Co., Ltd. is a company that imports and sells various products from SMW-AUTOBLOK, including chucks, cylinders, and automatic centering and vibration stop devices. We handle a variety of chucks, cylinders, and automatic centering and vibration stop devices, and we have a system in place in Japan that allows us to not only sell these products but also provide maintenance for them. If you have any questions about chucks or cylinders, please feel free to consult with us. In recent years, we have also been selling centering vises and pallet change systems for machining centers, which are being used by many customers. Additionally, since 2021, we have started selling inductive couplers that can transmit power and signals without contact. We also offer electric chucks and electric vises that are compatible with hydraulic-less and air-less systems.
