Achieve fast response with the laminar flow method (differential pressure type)! We offer a lineup ranging from 0.5 CCM to 10 LPM.

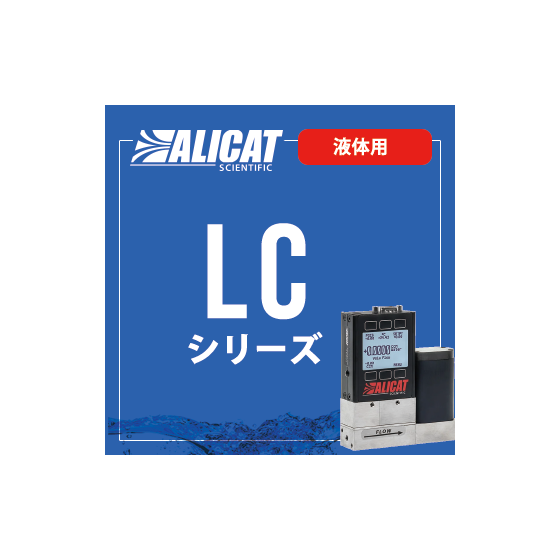

The "LC/LCR Series" is a liquid flow controller manufactured by ALICAT that can quickly control to a specified flow rate with a response speed of 100 ms using a laminar flow method (differential pressure). It allows for the desired flow rate to be achieved in a short time. Flow rate settings can be easily operated via a front switch, and settings can also be made through analog input or communication. It comes standard with an LCD display, allowing for real-time flow rate monitoring due to its fast response speed. Standard external outputs include 0-5 VDC output and RS-232C communication. A NIST traceable inspection certificate is included as standard. 【Compatible Liquids】 Pure water, methanol, isopropanol, ethanol, ammonia, dimethyl ether, isopentane, thiophene, isooctane, heptane, acetone *Other liquids may also be compatible. 【Features】 ■ 20 ms fast response / 100 ms control response ■ ±2% F.S. flow accuracy ■ From 0.5 CCM to 10 LPM ■ Display with backlit LCD ■ Standard analog output and RS-232C communication *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 - Three methods are available for setting the control flow rate, which can be done via the front switch, analog input, or communication. - Equipped with a highly accurate differential pressure sensor for precise flow measurement. - Issuance of traceability system diagrams is also possible. - Features a backlit LCD display for good visibility. - The backlight can be easily operated ON/OFF using the front switch. - Simultaneous display of volumetric flow, temperature, and pressure. - An additional second analog output is also possible. - Communication outputs volumetric flow, temperature, and pressure, allowing connection to computers and other communication-compatible devices for monitoring and logging. - As an additional option, cumulative flow measurement is available, and batch control is possible with the controller. - Equipped with a lithium-ion battery, allowing approximately 18 hours of operation on a full charge (when using monochrome LCD; optional). *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
