ALICAT mass flow controller (low pressure loss type) delivery time 4 weeks

A mass flow controller that measures with a very small differential pressure, has very low pressure loss, and is ideal for use in low-pressure environments. Current delivery time is approximately 4 weeks.

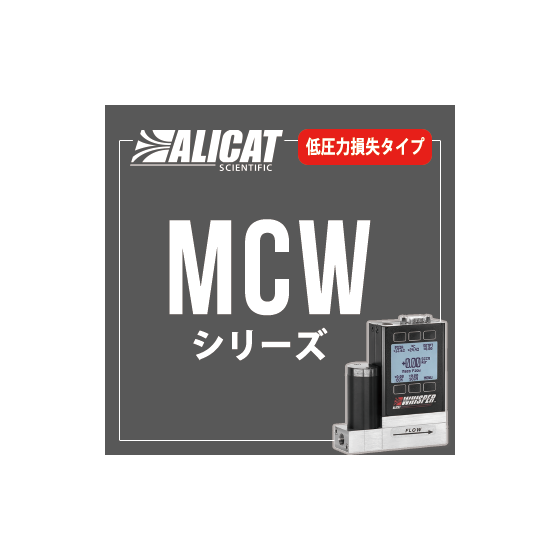

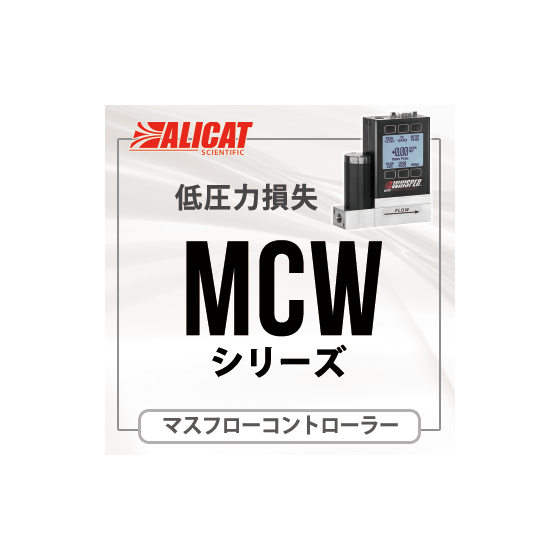

The "MCW/MCRW series" is a mass flow controller manufactured by ALICAT, ideal for environments where low pressure is used, as it can measure with very small differential pressure, resulting in minimal pressure loss. It achieves fast response through a laminar flow method (differential pressure type). Equipped with a highly accurate differential pressure sensor, it measures flow rates precisely. In addition, we offer the "MCS/MCRS series," which supports 128 types of gases, including corrosive gases and refrigerants. 【Features】 ■ 100 ms control response ■ High flow accuracy of ±(0.8% RD + 0.2% FS) ■ Range from 0.5 SCCM to 1000 SLPM ■ Standard analog output and RS 232C communication ■ Compatible with mixed gases ■ Standard equipped with a backlit LCD display *For more details, please refer to the PDF document or feel free to contact us.
