Easily check the water flow in the piping at a glance. For the piping around the molding machine! "Flow Monitor"
Only the lens part can be replaced! The main unit can continue to be used, contributing to cost reduction. *Video of lens replacement available.

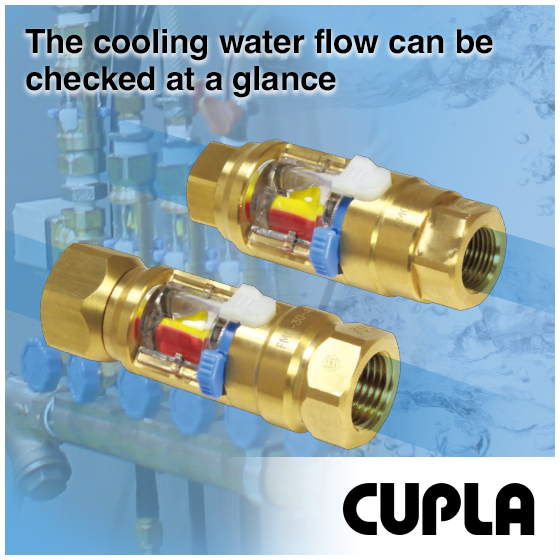

The "FMC-30-3F/FMC-30-4F" is a lens exchange type flow monitor. It allows for visual confirmation of fluid flow through the rotation of two colored blades from a low flow rate (2L/min), and the monitoring lens (common for 3/8 and 1/2 sizes) can be replaced while still piped. Additionally, we also offer the valve-equipped flow meter "FM-03-B," which achieves stable cooling water flow and the reproduction of specified flow rates. 【Features】 ■ Visual confirmation of fluid flow through the rotation of two colored blades from a low flow rate (2L/min) ■ Replacement of the monitoring lens (common for 3/8 and 1/2 sizes) is possible while still piped ■ Prevents unintended detachment of resin parts with a stopper ■ The threaded part on the T2 side can rotate freely left and right, making installation and replacement of the main unit easy *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications (Partial)】 ■ Main body material: Brass ■ Maximum operating pressure: 1.0MPa {10kgf/cm2} ■ Pressure resistance: 1.5MPa {15kgf/cm2} ■ Flow rate range: 2–20L/min ■ Seal material (indication symbol): Fluoro rubber (FKM) ■ Operating temperature range: +10˚C to +80˚C *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applicable Fluid】 ■Water *For more details, please refer to the PDF document or feel free to contact us.
