Piping around the molding machine! Compatible with narrow pitches, allowing for the replacement of only the lens part, contributing to cost reduction.

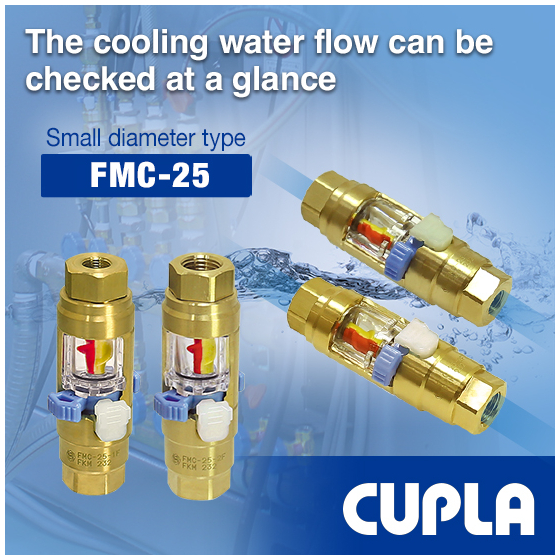

The "FMC-25-1F/FMC-25-2F" is a lens exchange type flow monitor. A new small diameter version of the conventional model "FMC-30-3F/FMC-30-4F" has been introduced! It supports even lower flow rates (0.6–6L/min) than the previous flow monitors. The rotation of the two colored blades allows for visual confirmation of fluid flow, making it easier to see the flow at low rates. It can also be installed in narrow pitches due to the miniaturization of the mold. Like the previous models, the monitor lens (common for 1/8 and 1/4 sizes) can be replaced while still piped. Additionally, we also offer the flow meter "FM-03-B" with a valve that stabilizes cooling water flow and reproduces specified flow rates. 【Features】 ■ Visual confirmation of fluid flow with the rotation of two colored blades from a low flow rate (0.6L/min) ■ Monitor lens (common for 1/8 and 1/4 sizes) can be replaced while still piped ■ Prevents unintended detachment of resin parts with a stopper ■ The threaded part on one side can rotate freely left and right, making installation and replacement of the main unit easy *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications (Partial)】 ■ Main body material: Brass ■ Maximum operating pressure: 1.0MPa {10kgf/cm2} ■ Pressure resistance: 1.5MPa {15kgf/cm2} ■ Flow rate range: 0.6 to 6L/min ■ Seal material (indication symbol): Fluoro rubber (FKM) ■ Operating temperature range: +10˚C to +80˚C *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applicable Fluid】 ■Water *For more details, please refer to the PDF document or feel free to contact us.
