Customized strengths available to match the requested tests/research and development, ranging from basic manual and semi-automatic systems to those equipped with [automatic sample transport/automatic burr removal mechanisms/constant temperature chambers], etc.

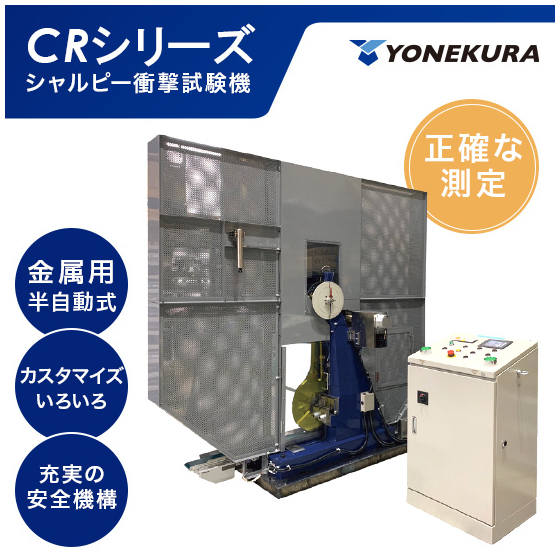

This is a shock testing machine for metallic materials, designed to achieve a stable structure with sufficient rigidity, ensuring reliable and reproducible test results. The "semi-automatic" feature, which automatically lifts and releases the hammer, reduces the labor and time required for operation, contributing to safety as well. By combining it with the data processing device we provide, it can automatically import and save data (such as angle and absorbed energy) to a PC, further supporting compliance systems. It is used not only for testing but also for research. If you have any questions, please feel free to contact us. ▼ Instrumentation Software [CHARPAC]* Optional ▼ The Charpy impact testing machine comes with instrumentation software that allows users to view results in graphs and numerical values instead of just visually. The software is developed in-house and can be customized to meet customer needs for ease of use.
Inquire About This Product
basic information
[Standards] JIS B7722 / JIS Z2242 [Basic Components] Main body/Anvil/Hammer (pendulum)/Safety protective cover/Motorized lifting mechanism/Control panel/Scale panel* *Subject to change based on specific usage requirements. [Weight] (for metals) 300J/500J/800J [External Dimensions] Size (including cover) Weight 300J W2100×D1200×H2050mm Approximately 650kg 500J W2100×D1200×H2100mm Approximately 1000kg 800J W2100×D1200×H2100mm Approximately 1200kg [Examples of Options] Base plate/Hammer drop prevention mechanism/Sample positioning mechanism/Sample recovery conveyor/Instrumentation/Data acquisition device/Digital angle display/Data transmission system Automatic sample transport/Automatic burr removal mechanism/Constant temperature chamber
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Mainly, we are utilized by companies related to steel and metals.
Detailed information
-

Semi-automatic / Full coverage
-

Semi-automatic
-

Manual simple cover
-

Manual rear cover
-

For lightweight metals
-

Blade part
-

1) Automatically determines the position of the test piece just before the test, retreats just before the hammer drop, and supports the 5-second measurement rule in conjunction with the hand switch.
-

2) The test piece can be easily positioned at the center by lightly pressing it against the tip of the cylinder.
-

3) After pressing the drop switch, the cylinder positions the test piece just before the hammer, and after the drop, it automatically returns and waits.
