"Soldering, circuit board, melting, brazing" suitable for on-site observation during heating [IR-HP]

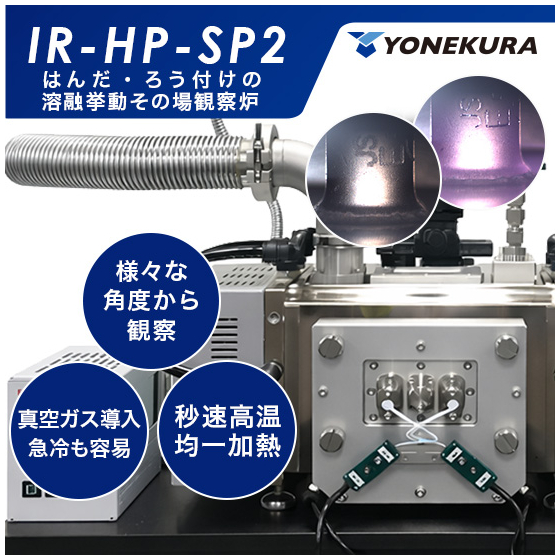

Large High-Temperature Observation Device 'IR-HP-SP2'
We will achieve on-site observation of micro-mount components such as chip components, melting of solids and powders, and soldering on substrates (□100mm)!
■Features of the Large Heating Observation Device "IR-HP Series" It enables on-site observation of small mounted components such as chip parts, substrates (up to 100mm), melting of solids and powders, and brazing! ▼Features▼ - Infrared concentration on the sample allows for uniform high-temperature heating of substrates and other materials at a speed of one meter per second. - Clean heating and clear heating observation with a simple structure that is maintenance-free. ■Applications On-site observation can be performed from the top or side of various materials. The videos saved during on-site observation display elapsed time and temperature, and also include a measurement function. The standard closed structure of the furnace body makes it easy to perform vacuum pumping and introduce various gases for rapid cooling. ■Basic Configuration of the Large Heating Observation Device "IR-HP Series" - Stage furnace body - Sample holder (100mm quartz holder with one R thermocouple) - Temperature controller - Cooling water circulation device - CCD camera and zoom lens - PC and image capture software If you have any questions or requests regarding the microscope stage, please feel free to contact us. We also conduct heating observation tests of samples and demonstrations for consideration of installation at our Yokohama office, so please contact us if you are interested.
Inquire About This Product
Related Videos
basic information
■Specifications Temperature range: RT to 1300°C (depends on the thermal capacity of the sample, etc.) Atmosphere: High-purity gas after vacuum evacuation; in gas flow Achievable vacuum level: Approximately 10 Pa to (depends on the pump's capability) Vacuum port: NW25 Sample stage: □100mm Heating method: Infrared lamp emission and reflective concentrated heating Cooling method: Natural cooling by turning off the lamp (rapid cooling available as an option) Heating characteristics: Up to 1000°C within 20 seconds (depends on the thermal capacity of the sample) Safety measures: Standard equipment: Furnace outer wall temperature sensor; temperature deviation Options: Over-temperature protection ■Options - Vacuum evacuation device Selectable from rotary pumps to turbo pumps according to the desired vacuum level - Gas introduction device Selectable from float-type flow meters to mass flow meters Gas can be introduced or switched at specified timings by turning the solenoid valve ON and OFF - Gas cooling mechanism Directly applies gas to the sample using a rapid cooling nozzle Rapid cooling is performed at specified timings by turning the solenoid valve ON and OFF
Price information
Please contact us.
Delivery Time
Applications/Examples of results
■Purpose You can observe "on-site" from the top or side of various materials. The videos saved from on-site observation display elapsed time and temperature, and also have a length measurement function. Since the furnace body has a sealed structure as standard, it is easy to perform vacuum pumping and rapid cooling with the introduction of various gases. For more details, please contact us.
