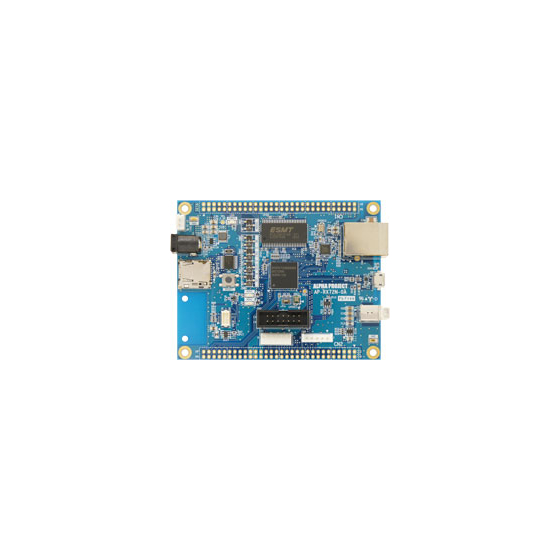

CPU board equipped with RX72N, AP-RX72N-0A
AP-RX72N-0A - Renesas Electronics RX72N equipped CPU board
Released the ideal board computer for industrial automation equipment, "AP-RX72N-0A."
The "AP-RX72N-0A" is a board computer equipped with the latest 32-bit CPU core "RXv3," an LCD controller, and a rich array of interfaces including Ethernet, USB, CAN, and UART, making it ideal for the development of industrial automation equipment that requires network functionality and real-time control. The RX72N, which is mounted on the "AP-RX72N-0A," features 4Mbytes of built-in flash memory capable of reading at an industry-leading class speed of 120MHz and 1Mbyte of SRAM, maximizing the performance of the "RXv3" core that operates at up to 240MHz. In addition to network functions such as Ethernet and CAN, it also includes an LCD controller that supports up to WVGA, enabling high-resolution graphics that were difficult to achieve with conventional general-purpose microcontrollers. We will also release the "RX72N Development Kit (RX72N-RXC)," which includes the "AP-RX72N-0A" and a development environment (compiler and debugger). This kit is perfect for those who are introducing the RX family for the first time. Additionally, it is compatible with our GUI integrated development environment "GEAL2" as a design tool for HMI screens for display and operation of the LCD.
Inquire About This Product
basic information
● Equipped with RX700 RXv3 core "RX72N" RX72N 240MHz Double-precision floating-point arithmetic unit Built-in graphic LCD controller (GLCDC) ● Large-capacity memory Built-in CPU RAM 1MByte Built-in CPU FlashROM 4MByte SDRAM 32MByte QSPI Flash ROM 4MByte ● Rich interfaces Ethernet, USB, microSD, CAN, Serial (UART) I/F, etc. ● Touch panel LCD interface Compatible with our LCD kit "LCD-KIT-D02" ● Wireless module interface Compatible with our wireless LAN module "WM-RP-10" Compatible with our Bluetooth module "BT-RL-01" ● Circuit diagrams and sample programs provided ● Our GUI integrated development environment "GEAL2" available for free You can easily and quickly design GUI screens. The board license version allows free use of all functions.
Price information
¥23,800 (including tax ¥26,180)
Price range
P2
Delivery Time
※The delivery time varies depending on the quantity, so please feel free to contact us.
Applications/Examples of results
- Embedded in industrial equipment - Prototyping, evaluation, education, training purposes
