If you are having trouble with the adhesion of components with complex shapes, please consult us.
[Ultra-Fine Processed Parts] Assembly and SMT Special Solder Jet Nozzles (LEDs, Connectors, Switches) *We provide integrated production from design to manufacturing.

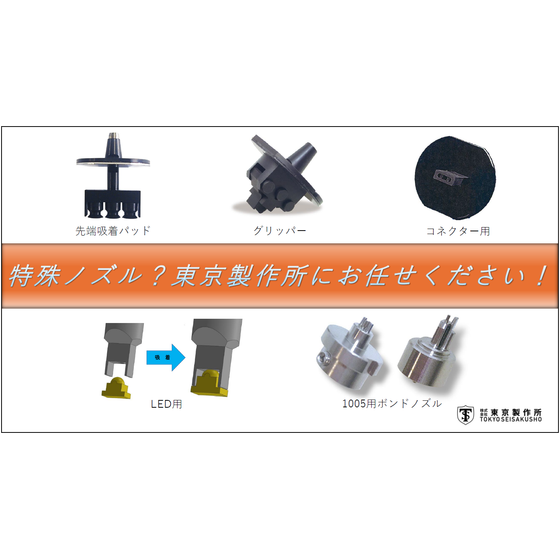

The shapes and materials of mounting components such as LEDs, connectors, shields, and switches have become increasingly diverse. For those struggling with complex shapes that are difficult to adhere to, we offer stable production through the design of nozzles for mounting machines, utilizing our expertise. We can also manufacture various machine cutters, consumables, and jigs (such as circuit board cutting cutters). *We have recently started producing solder jet nozzles. We possess processing technology for wire diameters of φ0.05mm using horizontal wire processing machines, enabling ultra-fine processing. We accommodate various machine manufacturers. 【Features】 ■ Scratch prevention measures ■ Take-back measures ■ Support for parts that are difficult to adhere to from the top ■ Design of suction pitch according to the size of the parts ■ Compatible with various pad sizes *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Manufacturing Process of Special Nozzles】 1. Design: Please provide information about the component parts. a. Part drawings b. Parts + embossed tape (2-3 pieces) 2. Quotation: We will send you the shape drawings and the quotation. Delivery time: 1 week 3. Manufacturing: Short delivery time (we will contact you once you place an order) 4. Others: Nozzle repair services available a. Nozzle re-surfacing, b. Tip urethane rubber replacement, c. Reflector replacement (consultation required) 【Bond Nozzle】 ■ Bond nozzle for 1005 parts (compatible with various manufacturers) 【Discrete Components】 ■ Radial components ■ Axial components 【DIP Nozzle】 Solder jet nozzle (compatible with various manufacturers) 【PCB Cutting Tool】 New manufacturing, used item polishing, surface treatment (compatible with various manufacturers) 【Maintenance Parts】 ■ Bond nozzle cleaning drill Φ0.2mm and above ■ Nozzle shaft cleaning jig + cleaning sponge *For more details, please refer to the PDF document or feel free to contact us.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Processed Materials】 ■ Synthetic diamond, conductive zirconia ceramic, stainless steel ■ POM, urethane rubber, pads, etc. 【Processing Methods】 ■ Wire electrical discharge machining with a diameter of Φ0.05mm ■ Rough processing of the adsorption surface by electrical discharge machining (Ra1.5μm～) ■ Non-stick treatment available Compatible with various manufacturers' nozzles * For more details, please feel free to contact us.
