Small high-resolution microscope thermography

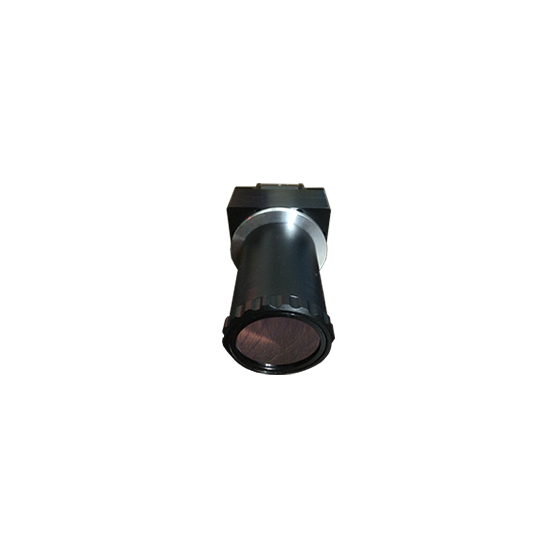

Microscope Thermography Thermal View X MCR Series
Top-class high resolution. It offers the highest level of performance as a non-cooled microscope thermal imager through proprietary signal processing and correction technology.
This thermal camera has a pixel count of 640x512 and boasts the highest resolution in its class with a resolution of 8.7um or lower. There are models capable of measuring up to 100℃ and others that can measure up to 400℃. It allows the use of various features of the Thermal View X App, and lens exchange is also possible. The software used is the Thermal View X App. In addition to a wealth of features such as still image and video acquisition, analysis, data output, offset function, and interval settings, it also includes unique signal processing and uniformity correction. The Thermal View X has been on the market for over 10 years, has long supported Windows 7, and will continue to protect the use of your valuable data for a long time.
Inquire About This Product
basic information
Type: Non-cooled thermography Pixel count: 640 x 512, 327680 pixels Resolution: Below 8.7μm, pixel pitch 5.7μm Wavelength: 7.5 to 13μm Temperature measurement range: 25 to 100°C Temperature measurement range: 35 to 400°C Type S: Standard software for microscopic thermography. It utilizes calibration data necessary for measuring small areas and various proprietary corrections. It includes basic functions such as video measurement, CSV time-series output, still images, CSV, and bitmap. Type R: In addition to Type S, it offers excellent features for video analysis, including elapsed time and temperature units, detection of maximum and minimum temperature frames within video files, detection of pattern changes, and the use of thumbnails for videos. File name input is also convenient.
Price range
P5
Delivery Time
※1 to 3 months
Applications/Examples of results
Analysis of thermal characteristics for advanced semiconductor development such as patterns on wafers, material structures, micro heating sources, light-emitting devices, micro encapsulants, and micro components/materials, as well as research and development on thermal balance and thermal conductivity in the field of carbon neutrality and green energy.
Detailed information
-
With the highest class of high resolution, our unique signal processing and correction technology provides top-level performance as a non-cooled microscope thermal imager. ThermalView X is a system application with over 10 years of proven track record for long-term use and support. You can confidently use your data for an extended period.
Company information
Temperature measurement is essential in all manufacturing and research, but it does not always involve content that can be measured accurately. We manufacture, develop, and sell systems, applications, and statistical analysis tools that measure extremely small areas and slight temperature changes that cannot be measured with thermocouples. We have numerous achievements with national and public research institutes, universities, private companies related to semiconductors and medicine, and hospitals.
