Composite implementation of LEDs such as red, white, blue, green, and infrared in a single lighting unit.
The blending of light colors can be freely adjusted according to the inspection purpose. LEDs in red, white, blue, green, and infrared can be combined and implemented in a single lighting unit. By combining the three wavelengths of red, blue, and green, full-color visible light illumination is achieved, and adding infrared allows for a very wide range of wavelengths to be covered. Each wavelength can be dimmed independently, enabling subtle combinations of lighting colors. Various shapes can be manufactured according to your preferences, including direct dome shape, direct ring shape, low-angle ring shape, and direct bar shape.
Inquire About This Product
basic information
For more details, please download the catalog or contact us.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
- Automotive parts/vehicle industry → Color identification of color meters - Food/packaging/pharmaceutical industry → Inspection of dirt/text on color packages - Electronic components industry → Inspection of solder balls
Line up(47)
| Model number | overview |
|---|---|

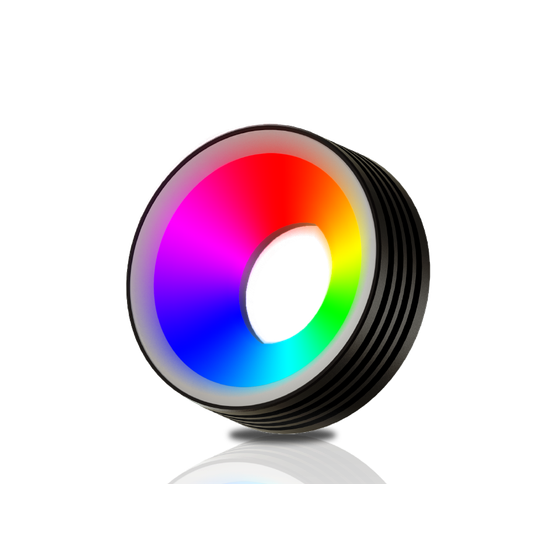

| IMAR-80RGB | Multi-Position Ring Illumination Input voltage:DC12V Power Consumption(W):6.6W |
| IMAR-80RGBHV | Multi-Position Ring Illumination Input voltage:DC24V Power Consumption(W):6.6W |
| IMAR-110RGB | Multi-Position Ring Illumination Input voltage:DC12V Power Consumption(W):10.2W |
| IMAR-110RGBHV | Multi-Position Ring Illumination Input voltage:DC24V Power Consumption(W):10.2W |
| IMAR-130RGB | Multi-Position Ring Illumination Input voltage:DC12V Power Consumption(W):13.2W |
| IMAR-130RGBHV | Multi-Position Ring Illumination Input voltage:DC24V Power Consumption(W):13.2W |
| IDBA-HM50RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):4.5W |
| IDBA-HM100RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):9W |
| IDBA-HM150RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):13.5W |
| IDBA-HM200RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):18W |
| IDBA-HM250RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):22.5W |
| IDBA-HM300RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):27W |
| IDBA-HM350RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):31.5W |
| IDBA-HM400RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):36W |
| IDBA-HM450RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):40.5W |
| IDBA-HM500RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):45W |
| IDBA-HM550RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):49.5W |
| IDBA-HM600RGB | Wide Bar Illumination High luminance Input voltage:DC24V Power Consumption(W):54W |
| IDBA-HM50RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):4.5W |
| IDBA-HM100RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):9W |
| IDBA-HM150RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):13.5W |
| IDBA-HM200RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):18W |
| IDBA-HM250RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):22.5W |
| IDBA-HM300RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):27W |
| IDBA-HM350RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):31.5W |
| IDBA-HM400RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):36W |
| IDBA-HM450RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):40.5W |
| IDBA-HM500RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):45W |
| IDBA-HM550RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):49.5W |
| IDBA-HM600RGB-S | Wide Bar Illumination High uniformity Input voltage:DC24V Power Consumption(W):54W |
| IFLA-30/41RGB | Rectangular Edge-Light Illumination Input voltage:DC12V Power Consumption(W):1.5W |
| IFLA-30/80RGB | Rectangular Edge-Light Illumination Input voltage:DC12V Power Consumption(W):3W |
| IFLA-3041RGBHV | Rectangular Edge-Light Illumination Input voltage:DC24V Power Consumption(W):1.5W |
| IFLA-3080RGBHV | Rectangular Edge-Light Illumination Input voltage:DC24V Power Consumption(W):3W |
| IDHM-32/36RGB | Chip LED Surface Illumination Input voltage:DC12V Power Consumption(W):3.6W |
| IDHM-45/45RGB | Chip LED Surface Illumination Input voltage:DC12V Power Consumption(W):5.5W |
| IDHM-55/55RGB | Chip LED Surface Illumination Input voltage:DC12V Power Consumption(W):8W |
| IHV-22RGB-P1 | Coaxial Spot Illumination Input current:350 mA (when each color is lit individually), 200 mA (when multiple colors are lit simultaneously) |
| IHVE-30RGBW-T | Coaxial Spot Illumination Input current:1000mA |
| IDD-70R/50RGB | Direct Dome Illumination Input voltage:DC12V Power Consumption(W):37.4W |
| IQDH-K320/350RGB | Half-Pipe Illumination Input voltage:DC12V Power Consumption(W):39W |
| IDDA-KH80RGB | NEO Dome Illumination Input voltage:DC12V Power Consumption(W):6.6W |
| IDDA-KH80RGBHV | NEO Dome Illumination Input voltage:DC24V Power Consumption(W):6.6W |
| IDDA-KH120RGB | NEO Dome Illumination Input voltage:DC12V Power Consumption(W):10.2W |
| IDDA-KH120RGBHV | NEO Dome Illumination Input voltage:DC24V Power Consumption(W):10.2W |
| IDDA-KH150RGB | NEO Dome Illumination Input voltage:DC12V Power Consumption(W):13.2W |
| IDDA-KH150RGBHV | NEO Dome Illumination Input voltage:DC24V Power Consumption(W):13.2W |
catalog(2)
