Tohoku University Technology: The technology to improve tunnnel diode rectification performance : T22-255
Introducing a nanoparticle layer into MIM tunnel diodes to significantly improve rectification performance!

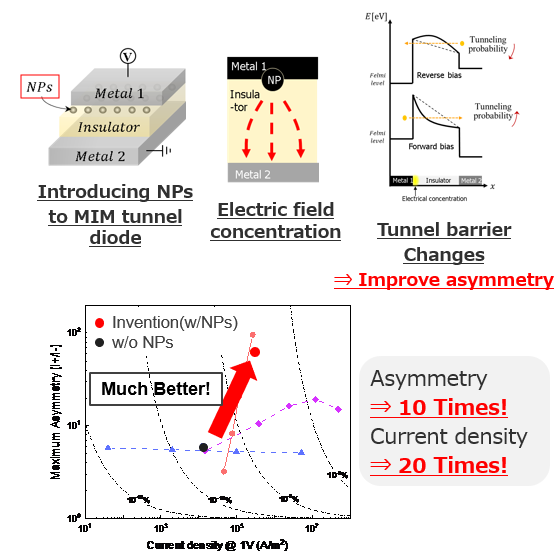

・Metal/insulator/metal tunnel diodes (MIM tunnel diodes) are used when rectifying signals of frequencies in the infrared and terahertz regions. ・ However, it is difficult to improve the rectification performance because there is a trade-off between electrical resistance and asymmetry. ・ The invention has solved the above issue by introducing metallic nanoparticle layers (NPs) into the MIM tunnel diodes and changing the tunnel barrier at forward and backward biases by the effect of electric field concentration. ・ Since the invention has greatly improved rectifying performance compared to tunnel diodes without NPs,the present tunnel diodes can be expected to be used to high-frequency devices (Optical rectenna, IR, THz detector).
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
