MEMS mirror for micro-scanner enabling stable control by eliminating nonlinear motion

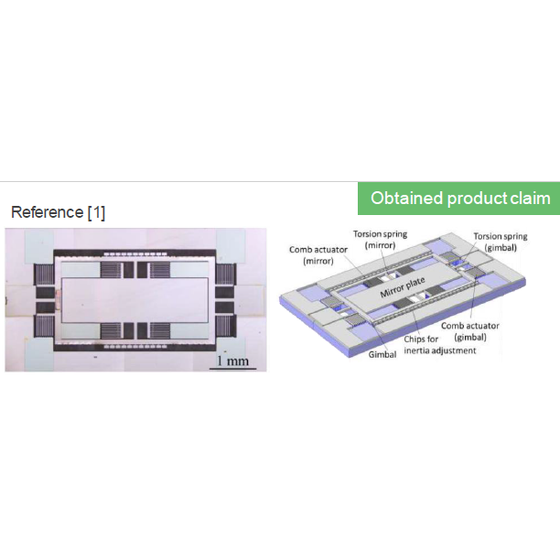

In recent years, the development of micro-scanner using MEMS scanning mirror has intensified in order to reduce the optical sensor system size such as LiDAR (Light Detection and Ranging). The omnidirectional scanning mirror which is a type of MEMS mirror device, is being researched for its potential application for LiDAR equipped on automated vehicle. One possibility to realize this is to rotate the mirror section by using "gimbal" technology, which has 2 mutually orthogonal axes. However, the rotation around the 2 orthogonal axes interferes with each other, resulting in nonlinear motion, making it impossible to control the mirror movement in a stable manner. This invention can provide an omnidirectional scanning mirror that can stably control the mirror movement. This omnidirectional scanning mirror is composed of a mirror, a rotation axis and a support section. The vertical component of the moment of inertia tensor of this mirror is located within a certain range in order to control mirror stability.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
