Contributing to safer work practices! It informs you of the direction and area of warning targets.

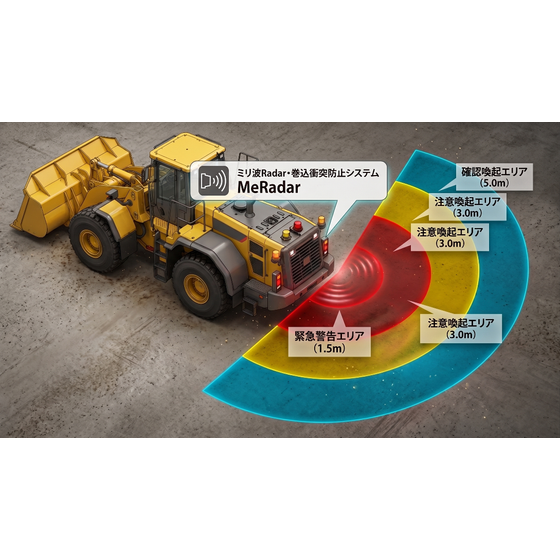

This is a millimeter-wave radar-based collision prevention system compatible with forklifts, large heavy machinery, and various work vehicles. It strongly supports on-site safety through precise distance measurement in meters. 【Key Features】 ◇ Accurate area detection in meters: By employing millimeter-wave radar, reliable distance settings can be made according to the site environment and application, such as 1.5m, 3.0m, and 4.5m. ◇ Intuitive visualization of danger direction: In two-direction detection, the left and right radars and warning lights work in conjunction. LED flashes and buzzer sounds instantly convey the "direction" and "distance" of approaching danger to the operator. ◇ "Three levels of warning" and "vehicle control" according to the situation: The warning levels are categorized into three stages based on danger level: [Confirmation Alert], [Caution Alert], and [Emergency Warning]. In the most dangerous areas, options for automatic vehicle behavior control, such as forced engine shutdown or rapid deceleration, can also be selected. 【Benefits of Implementation】 It significantly contributes to preventing serious contact and entrapment accidents with people and obstacles without sacrificing on-site work efficiency. 【Main Compatible Vehicle Types】 Forklifts, small to large heavy machinery, various work vehicles, etc. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
Compatible vehicles: Forklifts, small to large heavy machinery, various work vehicles, mobile operating equipment, etc. Power supply voltage: DC 12V to 24V (supplied from the vehicle's accessory power) Detection method: Millimeter-wave radar sensor Radar angle: S=100 degrees, V=20 degrees (can be installed by changing the orientation according to application) Detection distance (area): 1.5m / 3.0m / 4.5m or 5.0m *The alarm area settings will be adjusted at the time of order. Re-setup will incur additional costs. Warning levels: 3 stages (confirmation alert / caution alert / emergency warning) Alarm method: 3-stage LED warning light (flash patterns and behavior control can be selected. Dimming possible with the included driver) Buzzer/Speaker (with a switch on the bottom for changing modes. Volume adjustable with the included driver) Vehicle-side control integration: Forced engine stop or rapid deceleration via HST when entering the most dangerous area (RED zone) (selectable) Basic set contents: Radar analysis box, millimeter-wave radar sensor, LED warning light, buzzer (speaker), installation extension cable, power line
Price information
It varies depending on the purpose and quantity. For more details, please feel free to contact us using the "Inquiries about this product" button. You can also contact us from here: https://www.joqr-bkc.co.jp/contact_media.php
Price range
P3
Delivery Time
※It varies depending on the purpose and quantity, so please feel free to contact us.
Applications/Examples of results
"MeRadar" is used primarily in hazardous environments where heavy machinery and humans work together, such as manufacturing factories, logistics warehouses, and construction sites, with the aim of preventing contact and entanglement accidents between people and obstacles. 【Main Compatible Vehicles and Equipment】 Logistics and Warehousing: Forklifts Construction and Infrastructure: Various work vehicles including small to large heavy machinery and cranes Manufacturing and Factories: Mobile operating equipment and specialized vehicles within factories 【Specific Use Cases】 ◆ Safety checks during turning and reversing: The millimeter-wave radar reliably detects people who have entered the blind spots of heavy machinery, as well as equipment and obstacles in the movement path and turning range. ◆ Management of proximity risk in meter increments: Over a wide range of 1.5m to over 4.5m, it prompts operators to slow down or conduct safety checks in three stages—"Confirmation," "Caution," and "Emergency"—according to the degree of proximity. ◆ Collision avoidance and emergency stop in case of an accident: Even if there are oversights or delays in braking, it prevents serious accidents at the brink by coordinating vehicle behavior control, such as "forced engine shutdown" or "emergency deceleration," when entering the most dangerous areas.
