Wireless communication device for small-scale AGV systems, easy configuration, easy setup.

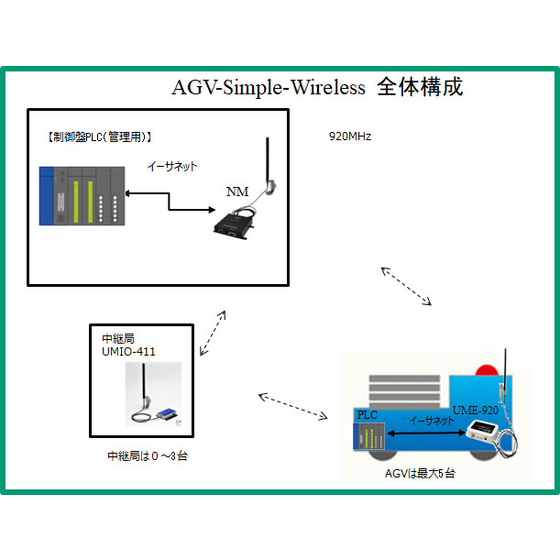

The communication and control are performed by automatically exchanging memory information between the parent-side PLC and the AGV-side PLC via wireless transmission. Connection - Connect the wireless master unit (NM) to the parent-side PLC via Ethernet. - Connect the wireless slave unit (UME-920) to the AGV-side PLC via Ethernet. Transmission and Reception - The memory addresses for data exchange and frequency channels are pre-set. - To send information, write the data into the transmission data area and increment the transmission counter by +1. - For reception, read the reception data area when the reception counter changes. Features 1. The wireless operates in the 920MHz band, avoiding interference with WiFi and allowing for longer communication distances. 2. Only the settings for the control PLC, AGV-side PLC, and UME920 are required; the rest is managed by the wireless device. 3. The implementation period is short due to its simplicity. 4. Good communication response.
Inquire About This Product
basic information
Overview of Communication Functions 1. NM, LM Communication Distance: Approximately 100 meters indoors (depending on the environment) (Up to 1.2 km in good line-of-sight conditions) 2. Maximum Number of LM Units: Up to 5 units 3. Relay Stations: 0 to 3 units 4. Communication Response Time: Each upward and downward communication time is less than 500 msec (when managing 5 units) (However, there may be delays depending on the environment) 5. Roaming Time: Less than 300 msec (in good wireless environment)
Price range
P3
Delivery Time
P4
Applications/Examples of results
Small-scale AGV system 3 AGVs, 2 relays
Detailed information
-
UME-920 On-vehicle terminal (LM) UME-920 Overview Connects to the AGV side PLC via Ethernet and reads and writes the PLC's data memory. Communicates wirelessly with NM. Interfaces with the on-vehicle PLC via Ethernet.
-
Wireless Controller Network Master (NM) Overview Connects to the management side PLC via Ethernet and reads and writes the PLC's data memory. It communicates wirelessly with the LM according to the contents of the operation setting area within the PLC.
-
Wireless Relay Station (RPT) Model: UMIO-411AXS/UMDI-41AXS/UMDO-41AXS Overview It relays wireless communication between the Network Master (NM) and the Wireless Mobile Terminal (LM).
