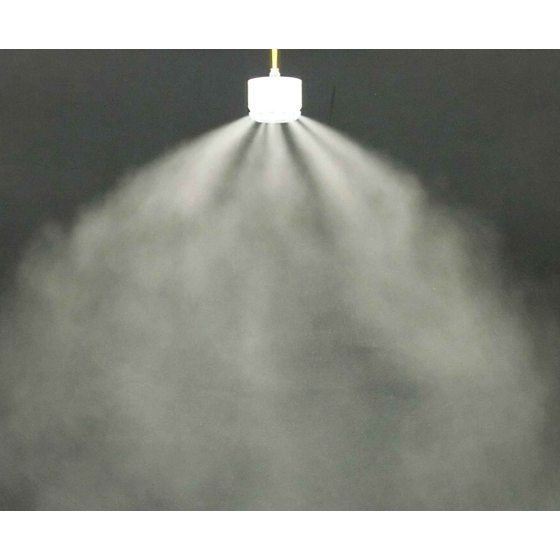

12 resin nozzles made of mold-formed material are arranged in a single cluster head! This creates a wide circular pattern.
We would like to introduce the "Miracle Fog MF008D12NW" that we handle. By arranging 12 units of the unique principle of MF008C, which shares both internal and external mixing of gas and liquid, a stable circular wide-range spray pattern can be achieved. At a siphon height of 100mm and an air pressure of 300kPa, the average particle diameter is below 10μm. (At an air pressure of 300kPa and a lift height of 500mm, the average particle diameter is 7μm.) Although it is a molded resin product, the molding precision is high, and the variation in spray volume is ±8%. [Overview] ■ Nozzle Name: Miracle Fog ■ Model Number: MF008D12NW ■ Spray Principle: Air Spray *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
