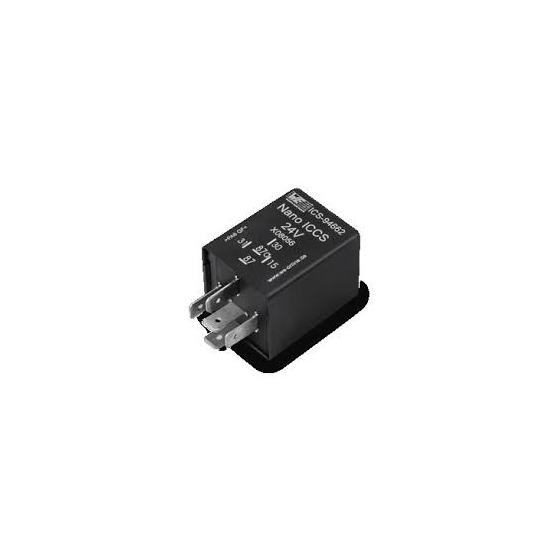

Nano ICCS is a programmable relay that can achieve a variety of operations.
- There are 5-pin or 6-pin types, and they can be easily connected to the board using a standard relay socket. - It adopts a high-performance MSP430 16-bit microcontroller (with flash memory), enabling a variety of control functions such as the following using one digital input and relay switching contacts: - Timer relay function (time delay operation) - Impulse relay function (one-shot operation) - Toggle relay function (alternate ON/OFF control)
Inquire About This Product
basic information
Operating Temperature : -40 °C to +85 °C Operating Voltage:12 V or 24 V version Continuous Current:20/30 A (NC/NO) Breaking Current Max:60 A Quiescent current :<1 mA Ingress protection :IP 53 / IP 65 with IP socket e1 approval-no. :03 5688 Dimensions : 40 x 30 x 30 cm
Price range
Delivery Time
Applications/Examples of results
【Main Use Cases】 - Applicable vehicles - Construction machinery, agricultural machinery, special vehicles, and others - Control of rear window heating elements - Delay control for turning off lights - Delay control for stopping fans - Other various onboard and industrial applications 【Programming and Customization】 - Programming is possible using tools from Würth Elektronik ICS - Each Nano ICCS unit can be individually configured, parameter adjusted, and programmed, and will be delivered in a programmed state based on customer requirements 【Standard Functions Supported】 - Delay timer function - Impulse (pulse) operation - Toggle operation, etc. Additionally, other functions that can be realized with a single digital input and relay contacts, as well as combinations of these functions, can be flexibly accommodated. Furthermore, we also support the creation of custom programs tailored to your requests.
catalog（1）
Download All Catalogs
Company information
Ultrasonic Electronics ICS provides intelligent solutions such as customized central electric units, power boxes, electronic controllers, HV solutions, and HMI solutions to many leading manufacturers of mobile machines and commercial vehicles.
