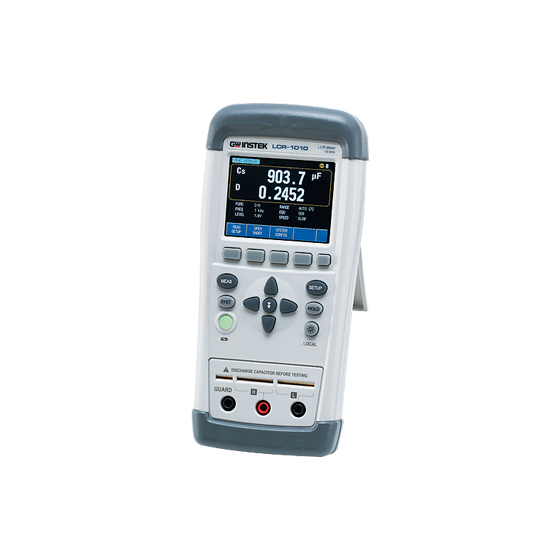

Handheld LCR meter
The LCR-1100/1010 (LCR-1000 series) is a handheld LCR meter equipped with a touch panel display. It features a 50,000 count resolution and a basic accuracy of 0.2%. It can measure up to 15 different combinations of parameters including C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, and Z-θd. Additionally, it is equipped with a lithium-ion battery that can be recharged for repeated use.
Inquire About This Product
basic information
● 50,000 count dual display (touch panel) ● Test frequencies: 【LCR-1100】 50/100/120/1k/2k/10k/50k/100kHz 【LCR-1010】 50/100/120/1k/2k/10kHz ● Measurement parameters: C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd ● Basic accuracy: 0.2% ● Six or eight selectable test frequencies depending on the model ● 15 types of measurement combinations available ● Selectable test levels: AC 0.3V/0.7V/1Vrms and DC +/- 1V ● Selectable measurement speeds: Fast 10 times/second, Slow 2.5 times/second ● Features: Automatic component type identification and measurement in AUTO LCZ mode, data hold ● Power supply: Supports two methods - lithium-ion battery and USB bus power (Type C) ● USB-VCOM interface for remote control ● Parameter settings and data logging possible using software
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
Please download the catalog for details.
catalog（1）
Download All Catalogs
