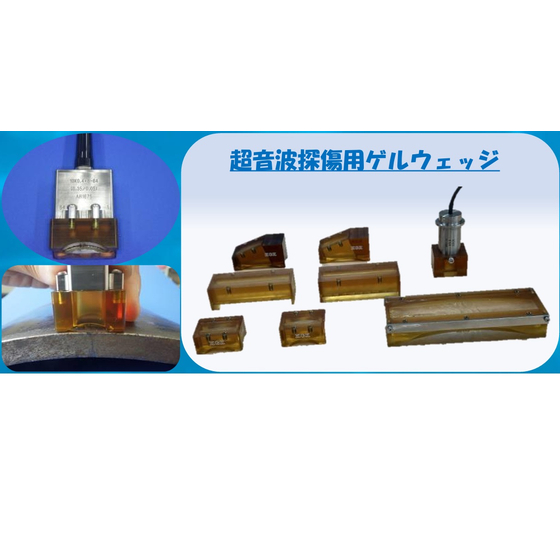

Shape-adaptive ultrasonic flaw detection gel wedge – conforms to complex shapes such as irregularities and curved surfaces
Gelwedge
Adheres closely to uneven surfaces and curves. Also ideal for adaptive TFM.
● Defects can also be detected with dry coupling. ● Scanning is possible with a small amount of water (mist spray level). ● Can be used to detect defects in samples where liquids cannot be applied. ● Gel wedges can be made to match the shape of conventional transducers or array probes. ● Can be made to match the shape of the sample. ● By using a gel sheet, shear waves can be propagated into the sample. ● The material of the gel sheet does not contain moisture (it is non-hygroscopic and does not absorb water).
Inquire About This Product
basic information
We will design the shape and dimensions to match the test specimen shape and the probe used.
Price range
Delivery Time
※Delivery times may vary depending on shape and quantity. Please contact us.
Applications/Examples of results
● Ultrasonic testing from the weld bead ● Ultrasonic testing from curved surfaces (concave/convex) ● Ultrasonic testing of test specimens that are sensitive to water, oil, etc.
catalog（1）
Download All Catalogs
Company information
KGK a specialized manufacturer of ultrasonic probes, supports your safety management through the production of ultrasonic probes. As a manufacturing group, KGK is committed to meeting your needs and also accepts orders for custom-designed probes in addition to standard probes. For the consider and selection of probes, we also conduct confirmation tests of the detectability using test pieces and other samples. If you have any issues regarding ultrasonic probes, please feel free to consult with KGK.
